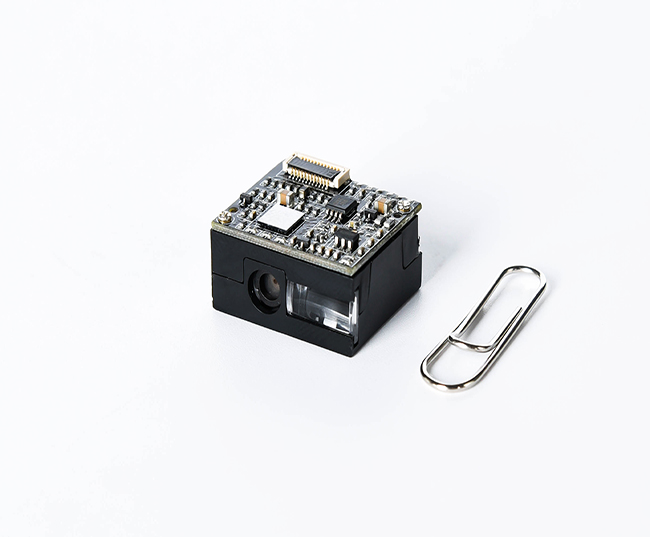

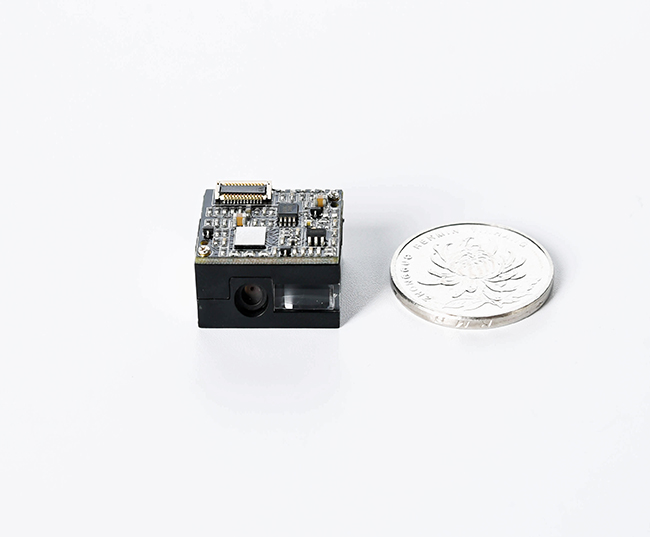

LV1395 1D Scanner Module

Performance
Interface TTL-232
Image Sensor Linear imager
Resolution 1500
Scan Rate 300 scans per second
Symbologies
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93,
ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5,
GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey
Reading Precision ≥ 4mil
Light Source LED（ 622 nm ~ 628 nm）
Depth of Field*
EAN-13 (10mil): 50mm~510mm
EAN-13 (13mil): 55mm~620mm
Scan Angle**
Pitch ±60°@ 0°Roll and 0°Skew
Roll ±30°@ 0°Pitch and 0°Skew
Skew ±60°@ 0°Roll and 0°Pitch
Symbol Contrast ≥ 30% reflectance difference
Mechanical/Electrical
Rated Power Consumption 0.21W
Operating Voltage 3.0 ~3.6 VDC
Current @ 3.3VDC
Operating Current 65mA
Standby Current 9mA

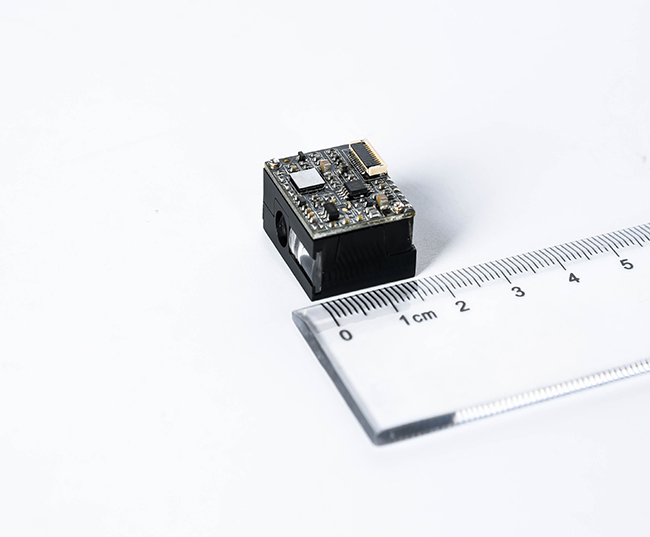

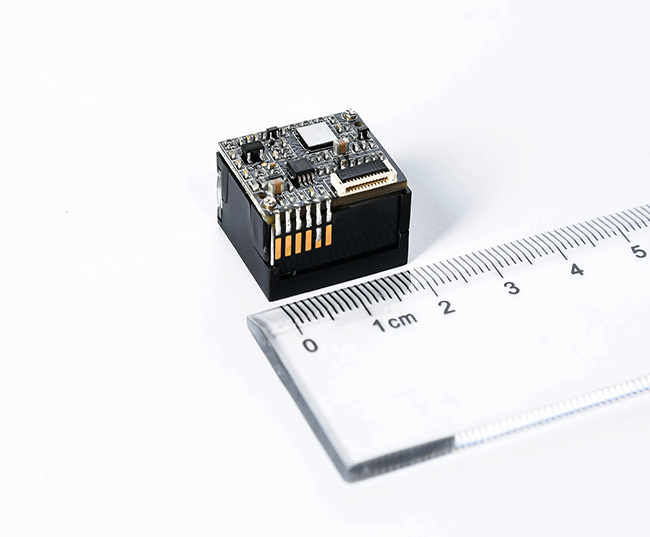

Dimensions 21.57(W)×18.62(D)×11.90(H)mm
Weight 4.5g
Environmental
Operating Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C
Humidity 5% ~ 95% (non-condensing)
Ambient Light 0 ~ 100,000 LUX
Certifications
FCC Part15 Class B； CE EMC Class B
Accessories

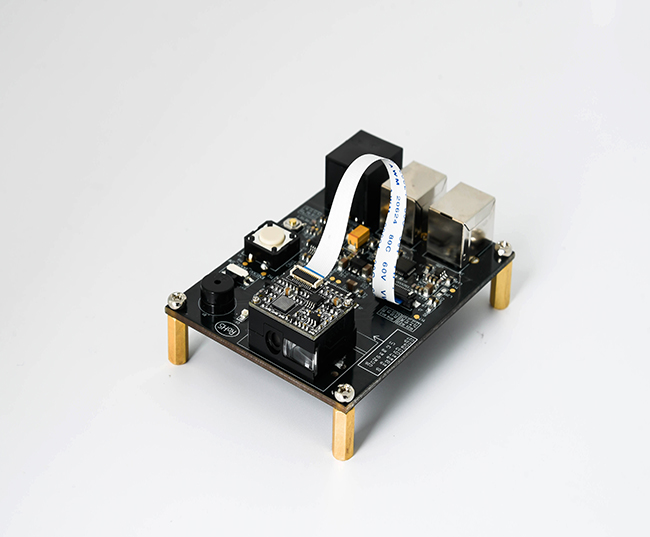

EVK3000
Software development board, equipped with a trigger button, beeper and
RS-232 & USB interfaces.
Cable
RS-232 Cable
Used to connect the EVK3000 to a host device; equipped with a power
connector.
USB Cable Used to connect the EVK3000 to a host device.
Power Adapter
Used to provide power for the EVK3000.
Output: DC5V, 2A; Input: AC100~240V, 50~60Hz.
* Test conditions: T=23℃, Illumination=300 LUX
** Test conditions:
Code 39, 3 Bytes; Resolution=10mil; W:N=3:1; PCS=0.8; Barcode Height=11mm; Scan Distance=120mm, T=23℃, Illumination=300 LUX
