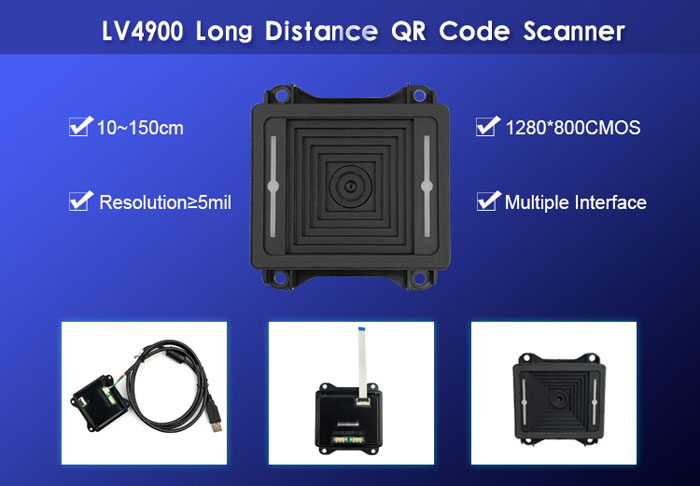

LV4900 parking lot long-distance module provides USB and TTL-232 interfaces to meet more interface needs. Can quickly read QR Code on paper or screen under different light, and the farthest recognition distance is 1.5 m.
Features of Parking Lot Barcode Reader
*The advanced technology incorporated in the scan engine helps reduce its power consumption and prolong its service life.
*The long range qr code scanner supports USB and RS234 interfaces to meet diverse customer needs.
*LV4900 has four RGB LEDs.When the engine is in the standby mode, the LED indicator appears to be white (default).Good Read LED can be set as red,green or blue according to actual needs.
Parameters of Kiosk QR Code Reader
Long Distance Mobile Payment QR Scanner
1280 * 800 CMOS
Various colors are adjustable (default Alipay blue, WeChat green, other red)
Decoding Successful Prompt
Buzzer Output, Adjustable Sound
Typical Depth of Field
Roll: 360°, Pitch: ±40°, Skew: ±45°
Field of View
Horizontal 40.4°, Vertical 25.9°
5V power adapter, with data cable to power the device
12 pin FPC horizontal socket: 3.3-5 VDC±5%
4 pin DuPont socket USB interface: 3.3-5 VDC±5%
0~100000lux (natural light)
USB Used to connect a host device.
RS232 Used to connect a host device.
