Category：2D Scanner Module
Product ID：LV2097
Views：1628

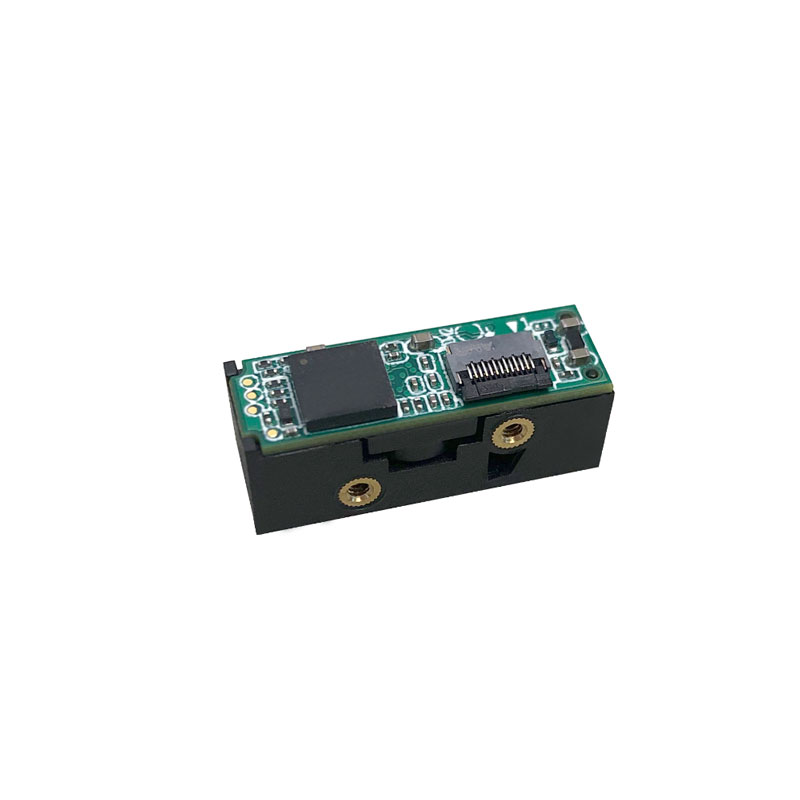

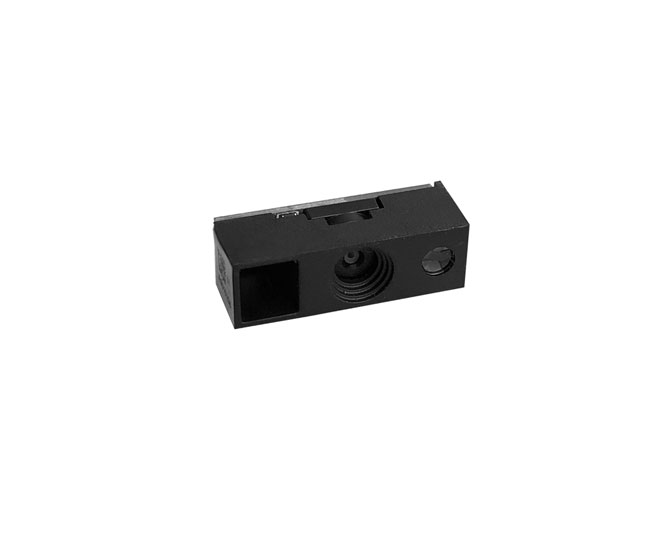

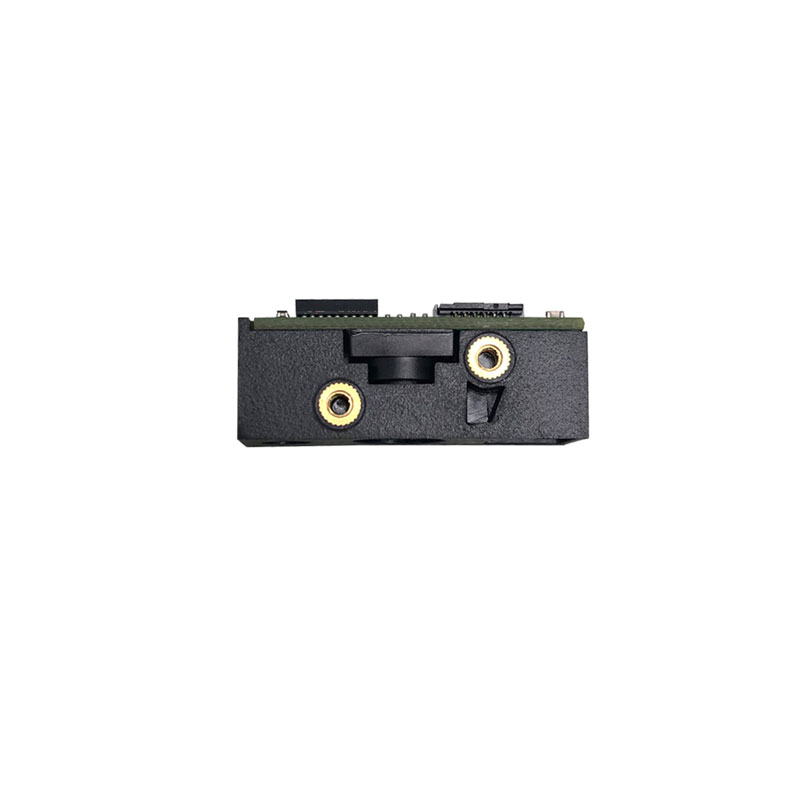

Product Introduction：LV2097 is the world's smallest 2D scan engine, armed with a computerized image recognition system, bringing about a new era of 2D barcode scan engines.

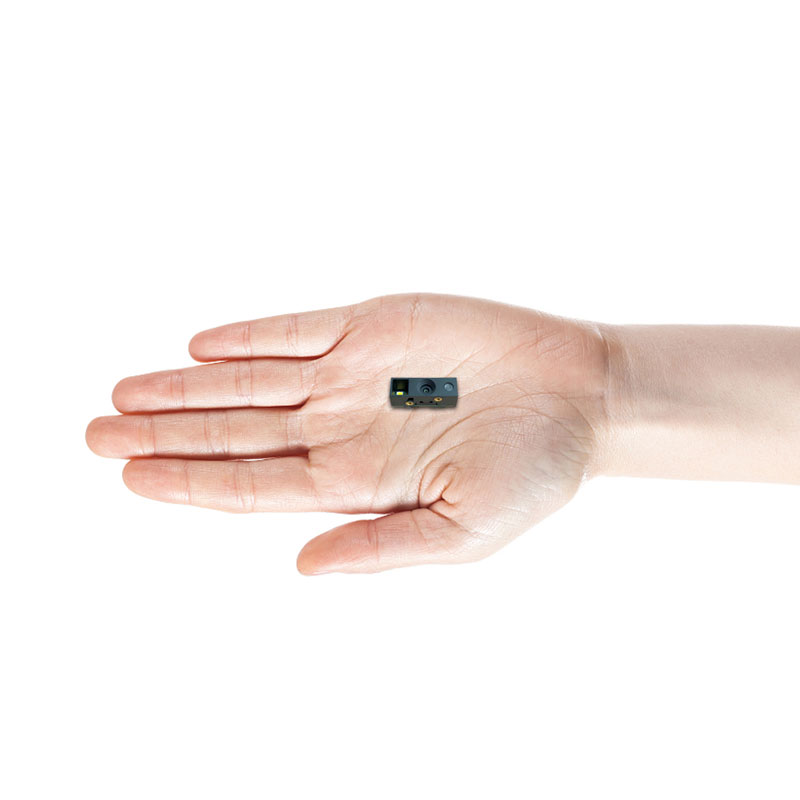

This module is only 21.5 x 9 x 7mm, which is our smallest scan engine so far. It saves space and power in embedded applications. The power consumption of the whole machine is only 452mW. LV2097's reading depth range, field of view angle range, and working temperature range are relatively large compared to competing products. Even for difficult to read one-dimensional and two-dimensional bar codes, its accuracy and speed are the best. Can be integrated into smooth and slim equipment or spaces.
Barcode Reader for Pos Features:
1.Delivers speedy and accurate scanning performance and supports mainstream 1D/2D barcode symbologies.
2. The LV2097 Excelsat Reading On-screen Barcodeseven When the Screen is Covered with Protectiveflmor Set to lts Lowest Brightness Level.
3. The LV2097 Supports USB and TTL-232 Interfacesto Meet Diverse Customer Needs.

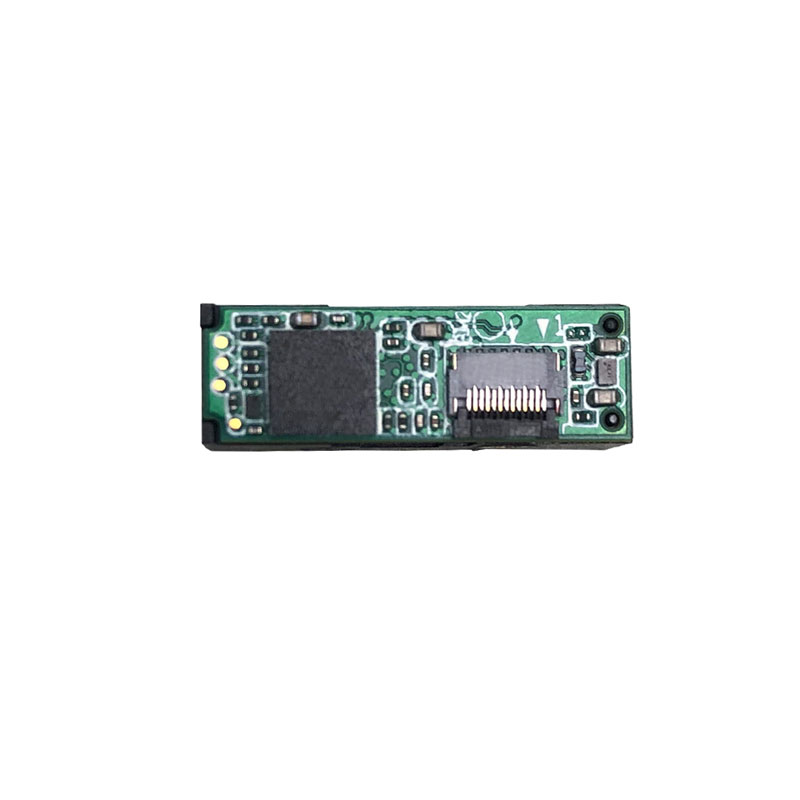

4.SeamlessIntegration of Imager and Decoder Boardmakes the Scan Engine Exremely SmallestAnd Lightweight and Easy to Fit into Miniature Equipment.
5.The Advanced MLDC Technology Incorporated in The scan Engine Helps Reduce Its Power Consumption Andprolonglts Service Life.
OEM Scanner Module Parameters
Performance | Image Sensor | 640*480 CMOS | |
Illumination Aiming | White LED Red LED (625nm) | ||
Symbologies | 2D | PDF417, QR Code, Micro QR, Data Matrix. | |
ID | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM 128, Plessey, MSI-Plessey | ||
Resolution* | >3mil | ||
Typical Depth of Field* | EAN-13 (13mil): 60mm-350mm Code 39 (5mil): 40mm-150mm PDF417 (6.7mil): 50mm-125mm Data Matrix (1 Omil): 45mm-120mm QR Code (15mil): 30mm-170mm | ||
Min. Symbol Contrast* | 25% | ||
Scan Angle | Roll: 360。，Pitch: ±60°, Skew: ±60° | ||
Field of View | Horizontal 42°, Vertical 31.5° | ||
Mechanical/ | Interface | TTL-232, USB | |
Electrical | Operating Voltage | 3.3VDC±5% | |
Current@3.3VDC | Operating | 138mA (typical) | |
Idle | 11.8mA | ||
Dimensions | 21.5(W) X9.O(D) x7.0(H)mm (max) | ||
Weight | 1.2g | ||
Environmental | Operating Temperature | -20°C to 55°C | |
Storage Temperature | -40°C to 70°C | ||
Humidity | 5% to 95% (non-condensing) | ||
Ambient Light | 0~100,OOOlux (natural light) | ||
Certifications | FCC Parti 5 Class B,CE EMC Class B, RoHS2.0, IEC62471 | ||
Accessories | EVK-N1 | Software development board for the NLS-N1, equipped with a trigger button, beeper and RS-232 & USBType-C interfaces. | |
Cable | USB Used to connect the EVK-N1 to a host device. RS-232 Used to connect the EVK-N1 to a host device. | ||
