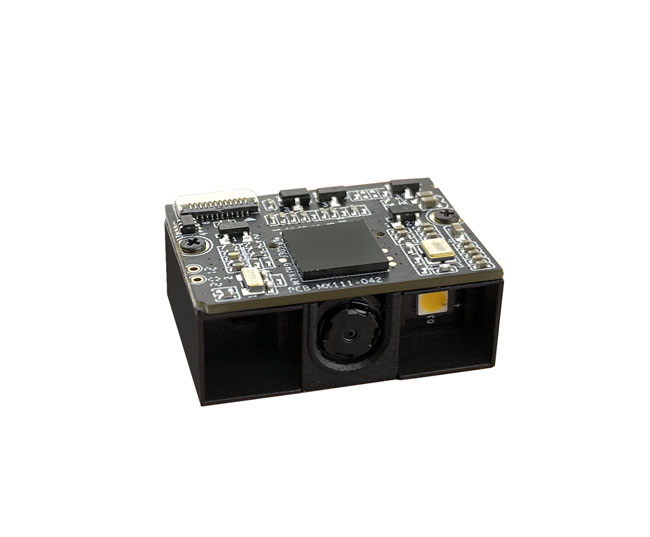

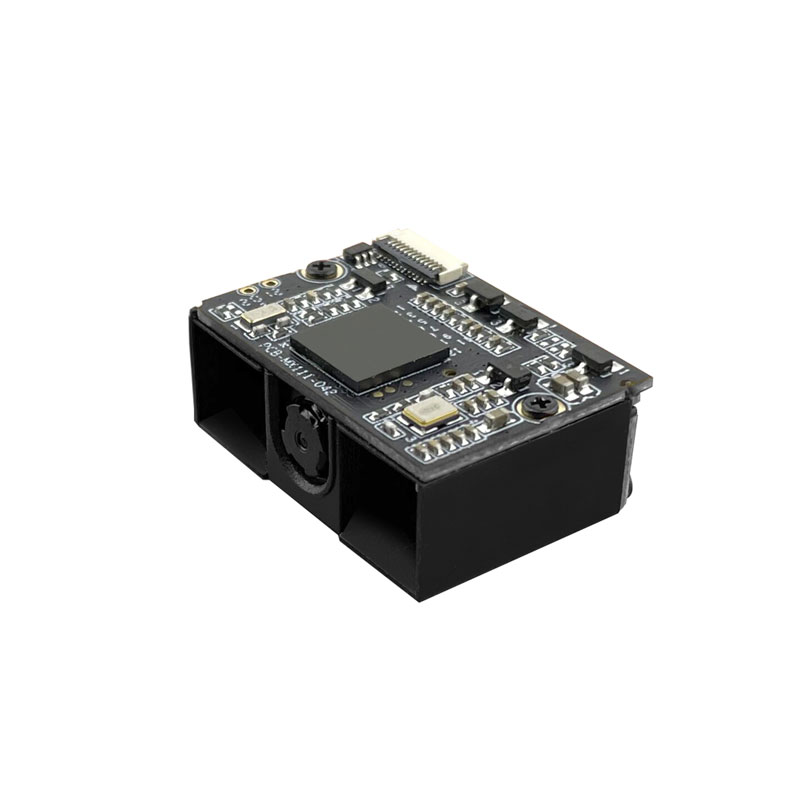

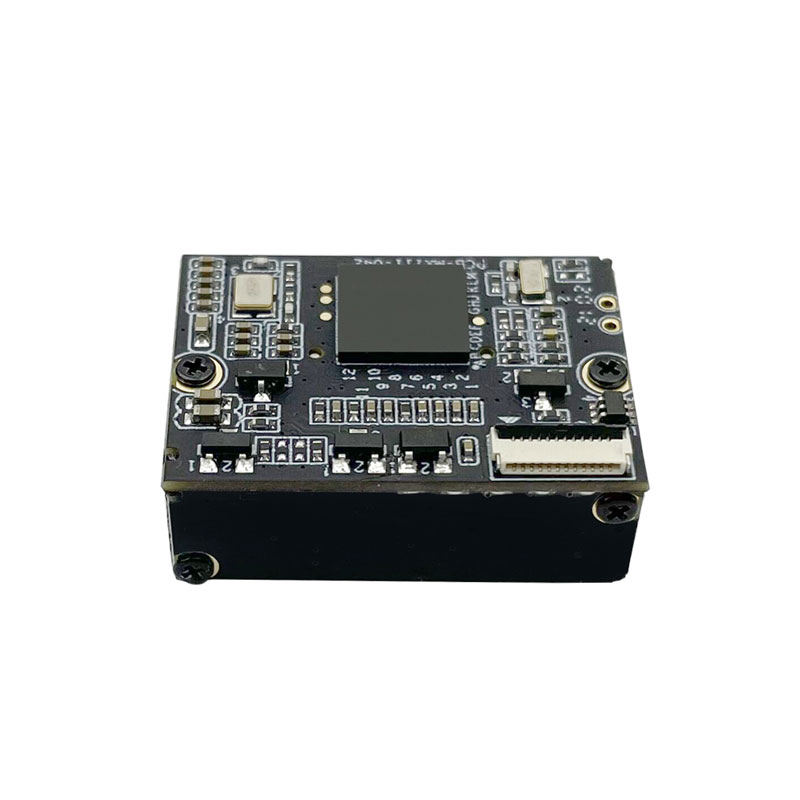

RD11C Low Price 2D Embedded Barcode Scanner

Product Introduction:

Cheap Barcode Scanner 1D 2D QR Scanner Module for POS Vending Machine

Product details

Cheap Barcode Scanner 1D 2D QR Scanner Module for POS Vending Machine


QR Code Reader for Turnstile Features:

* The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.

* Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment.

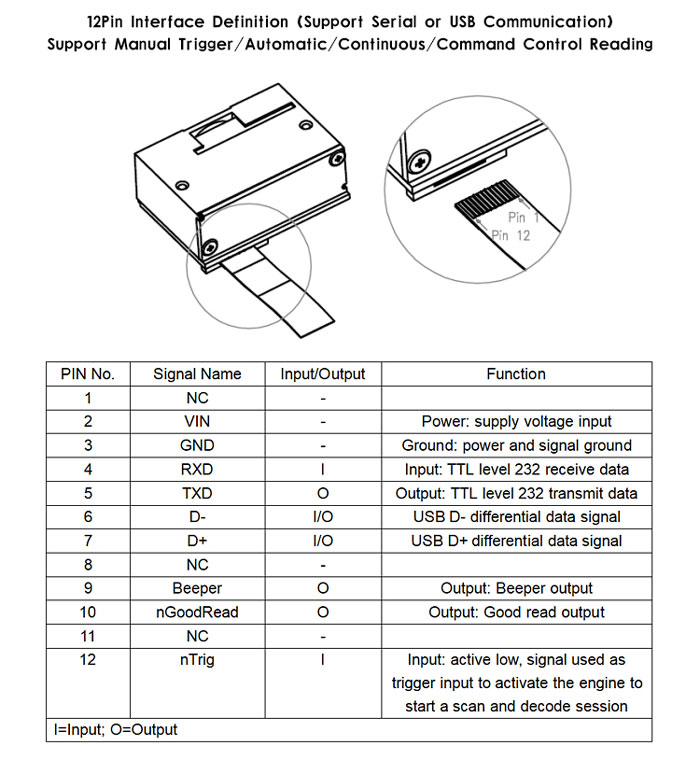

* The RD11C support TTL-232 12pin serial communication methods,or USB to meet diverse customer needs.


barcode reader Parameters

Specification

Optical System

640 pixels(H)x 480 pixels(V)

Illumination Element

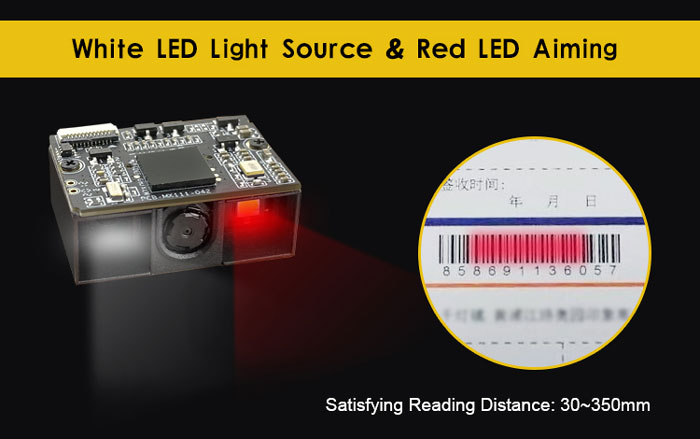

Aiming: 617nm LED; Illumination 3200K White LED

Depth of Field

40 mm - 280 mm @UPCA -13 mil 100 %,PCS 90%

Scan Angle

38° (H) x 25° (V)

Min. Bar Width

0.1mm(4mil)@Code 39, PCS=90%

Scan Mode

Trigger mode, Auto-sensing, Continuous scan, Pulse mode

Print Contrast

> 30%(UPC/EAN 100% , PCS 90%)

System Interface

TTL232 (12pin), USB 1.1 (HID KeyboardVirtual COM Port)

Depth of Field


Physical Characteristics

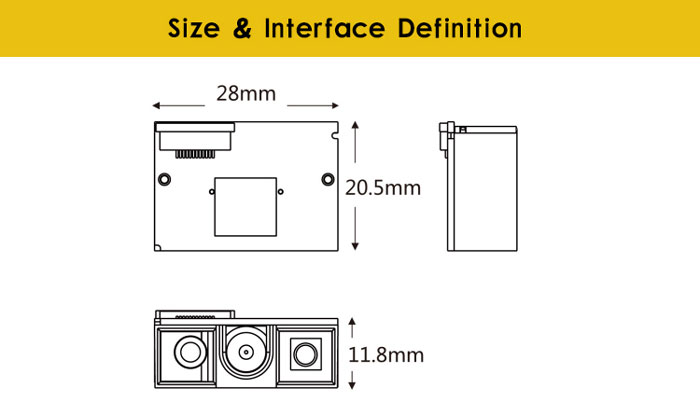

Dimensions

28.2mm x 20.5mm x 11.8mm

Weight

About 5g

Input Voltage

DC 3.3V±5%

Operating Current

130 mA ±5%Typical, 300 mA ±5%Max.

REGULATORY

EMC

CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Environment & Safety

Operating

Temperature

-20~50

Humidity

5%~95% (non-condensing)

Storage

Temperature

-40~+70

Light Level

0~100,000Luxfluorescence

Decoding Capability

UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII),

Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA

Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded



PDF417 MicroPDF417

Data Matrix QR Code Micro QR Code   Aztec Code Maxi Code Reads barcode reliably of cell phone screens
