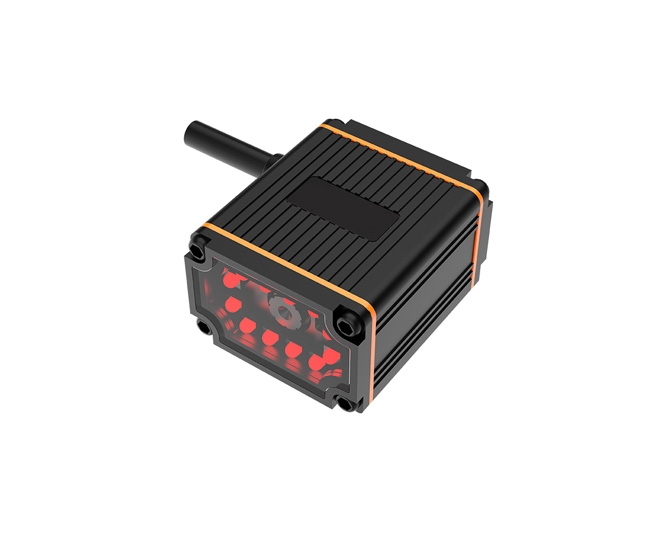

RK65 is a fixed two-dimensional scanning module suitable for general industrial environment use launched by RAKINDA company
RK65 is a fixed two-dimensional scanning module suitable for general industrial environment use launched by RAKINDA company. Its internal 1280*800 megapixel C-MOS sensor has excellent scanning recognition.

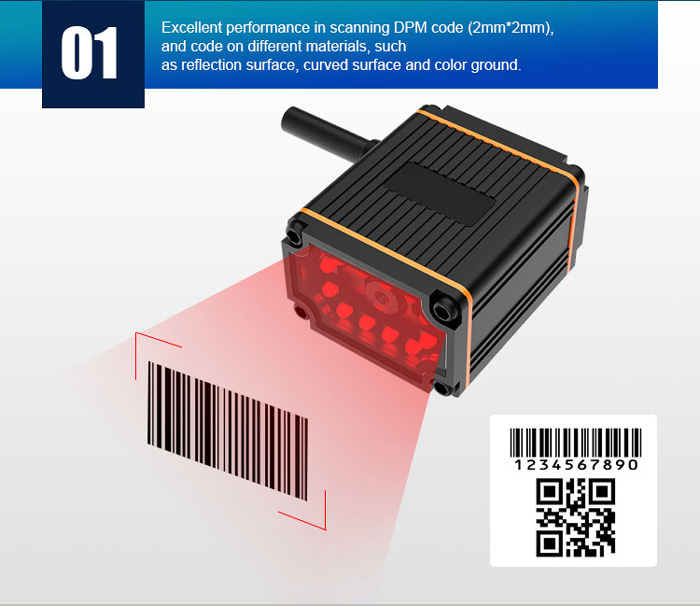

RK65 adopts a wide-angle optical lens, which can quickly identify long and thin barcodes in the vicinity. The scanning depth of field can support up to 320mm@13mil standard product codes.
RK65 uses a high-strength ABS shell design, and the internal device design takes into account the harsh industrial use environment, even if an accidental collision occurs, it will not cause damage to the product
Industrial Barcode Reader Features:
*Industrial Scanning Performance
*Smart Illumination System

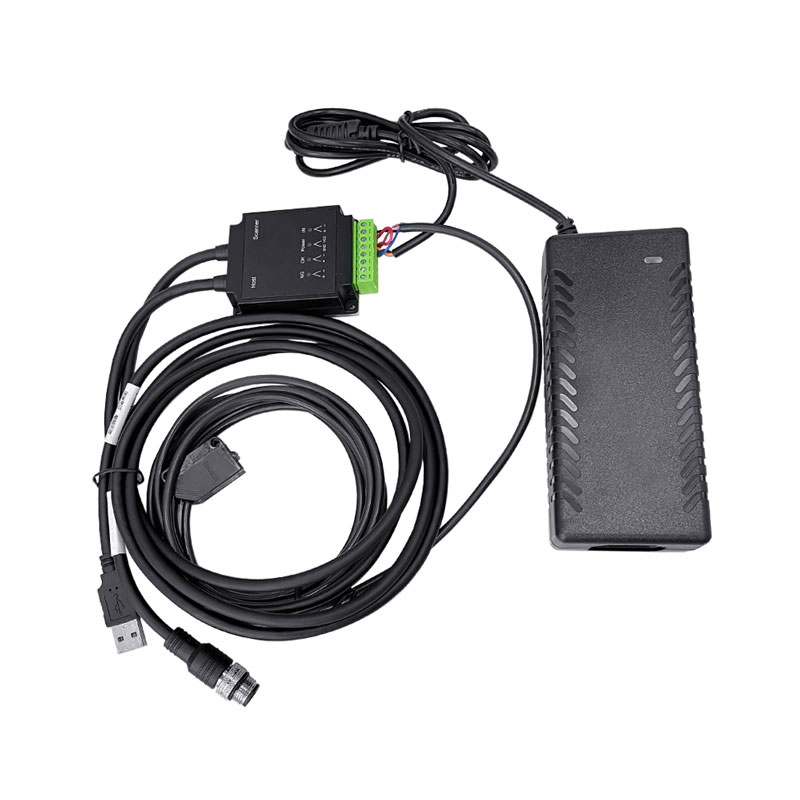

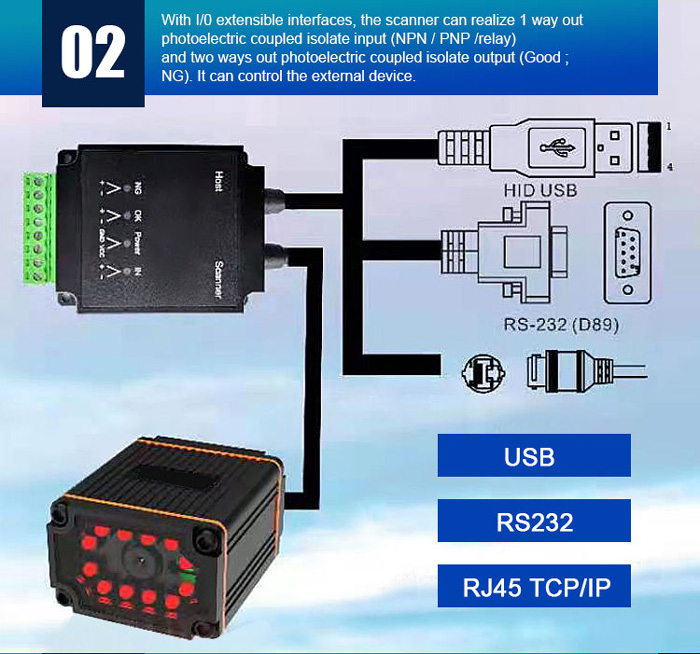

*Flexible I/O Extensible Interfaces
*USB/RS-232 multiple communication interface options
Parameters of Industrial QR Code Reader
Scan Performance | Resolution | 1280 * 800 | ||
Field of view | Horizontal 46° (H)，Vertical 29° (V) | |||
Illumination | High brightness red light/High brightness white light | |||
Aiming | Green LED aiming | |||
Scan Mode | Auto sense; external pulse mode; continuous mode; serial command mode | |||
Symbologie s |
1D | UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited , Composite Code-A , Composite Code-B , Composite Code-C | ||
2D | PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode | |||
Typical depth of field | Versio n | RK65-SR | RK65-HD | |
DOF | Code 39 (5mil) : 60 mm ~ 250 mm EAN-13 (13mil) : 50 mm ~400 mm QR (10 mil) : 35 mm ~ 130 mm | Code 39 (3 mil) : 50 mm ~ 90 mm Data Matrix (10 mil) : 40 mm ~ 150 mm QR (7 mil) : 35 mm ~ 120 mm | ||
Resol ution | 1D : ≥4 mil ; 2D : ≥9 mil | 1D : ≥3 mil ; 2D : ≥7 mil | ||
Contrast | ≥20% (UPC/EAN 100% , PCS 90%) | |||
Mechanical / Electrical Parameters | Dimensions (mm) | 36（W）×43（D）×24（H） | ||
Enclosure | Aluminum alloy | |||
Sealing | IP65 | |||
Indicator | Buzzer, LED | |||
Interface | RS232，USB (HID ; CDC)，Ethernet（TCP/UDP/Modbus） | |||
Power | 5-36 VDC | |||
Input | 1 way out photoelectric coupled isolate input (NPN / PNP /relay) | |||
Output | two ways out photoelectric coupled isolate output (Good ; NG) | |||
Current@5 VDC | Working current 300 mA ±5%（typical）, 450 mA ±5%（Max） Standby current 100 mA ±5% | |||
Environmenta l | Storage | -40℃~+70℃ | ||
Working | -20℃~+50℃ | |||
ESD | ±20 kV（air discharge），±8 kV（direct discharge） | |||
Certification | CE EN55022 , FCC Part 15 Class B , CE EMC Class B | |||
