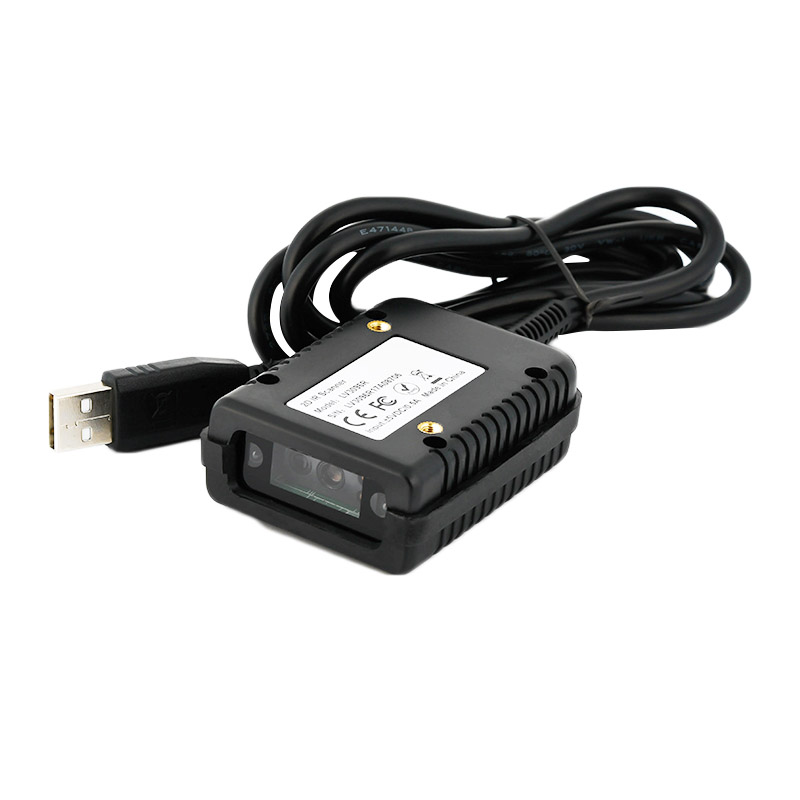

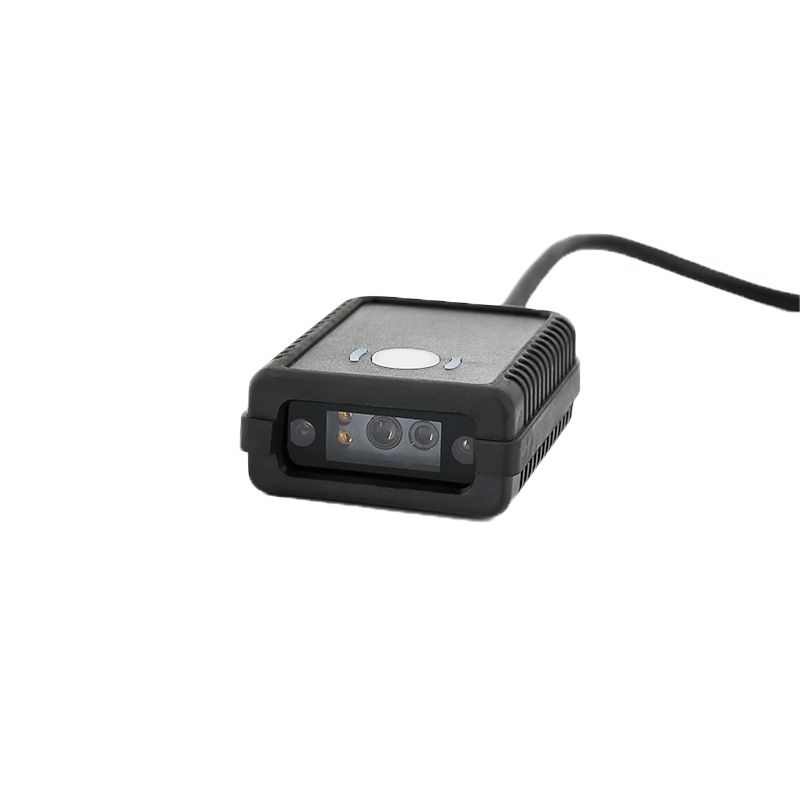

LV3096R 2D Fixed Mount Barcode Scanner

Product Introduction:

Category:2D Fixed Mount Barcode Scanner

Product ID:LV3096R

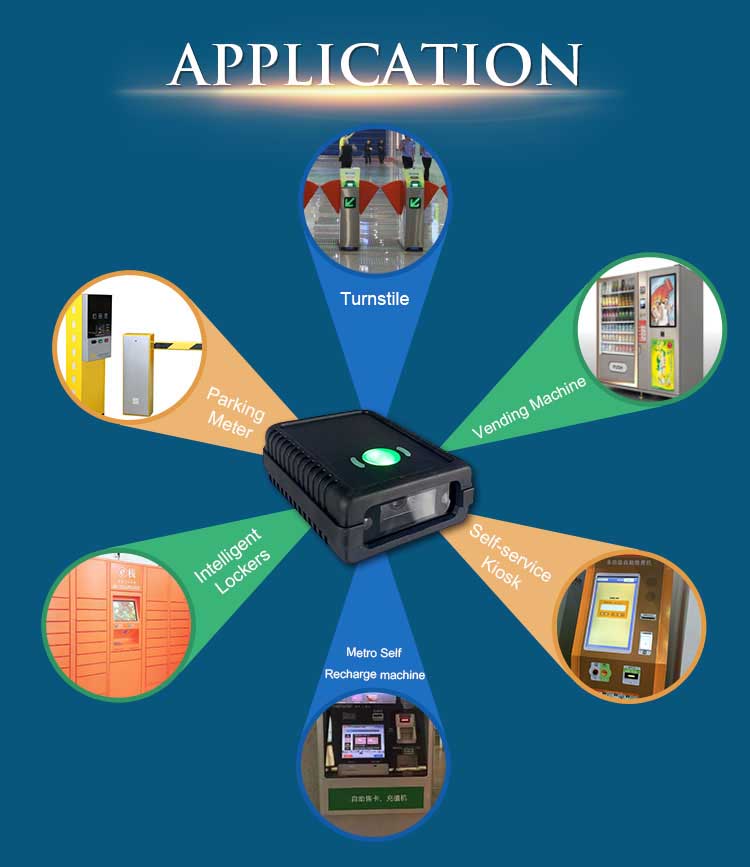

Product Introduction:The LV3096R have a interface is USB or RS232.It can be embedded into Kiosk/Vending Machine/Locker to read printed or screen barcodes.The LV3096R has good price and it can be provided OEM customized services.

Product details

(1).Ease of integration

The design is easy to integrate into your terminal device.The small size design of shell easy integration into various solutions. This 2D fixed barcdoe scanner has an IP54 rating making and it dust & water-proof

(2).It boasts the following features:

1.IR/Light Triggers

2.Automatic Exposure Control (AEC)

3.IP54-sealed Housing

4.Excellence Reading:All international standards 1d barcodes and QR Scanner,PDF417,Data Matrix

5.1.5m Drop Resistance

Product Specifications:

Image Sensor 752×480 CMOS
Reading Precision ≥ 5mil
Rated Power Consumption0.79 W

2D:PDF 417, Data Matrix( ECC200,ECC000,050,080,100,140) ,QR Code

1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5,

ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix2 of 5, Code 11,

Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.

Operating Voltage5V DC
Operating Current 240 mA

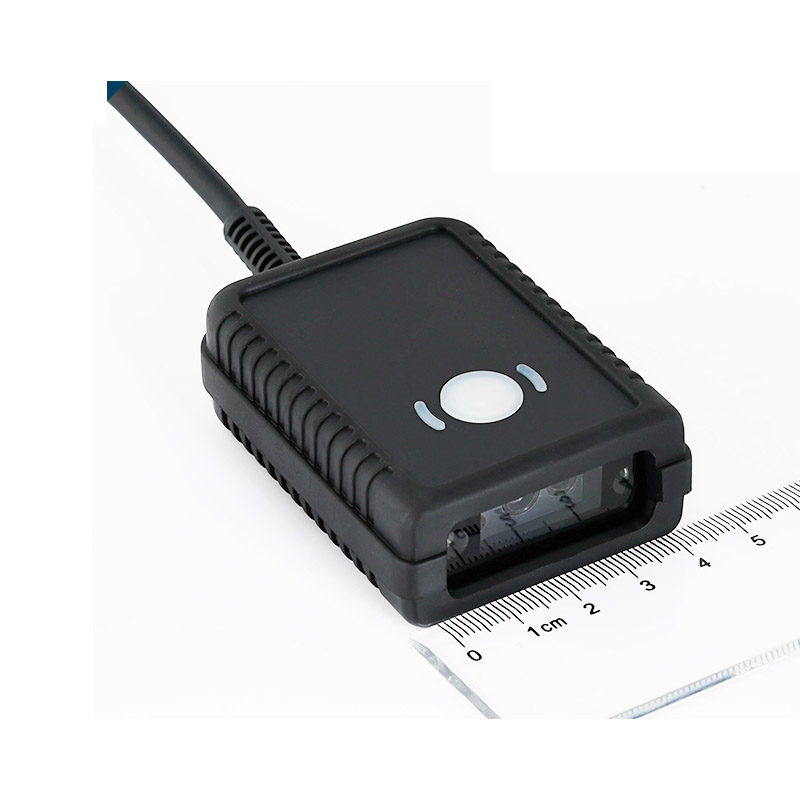

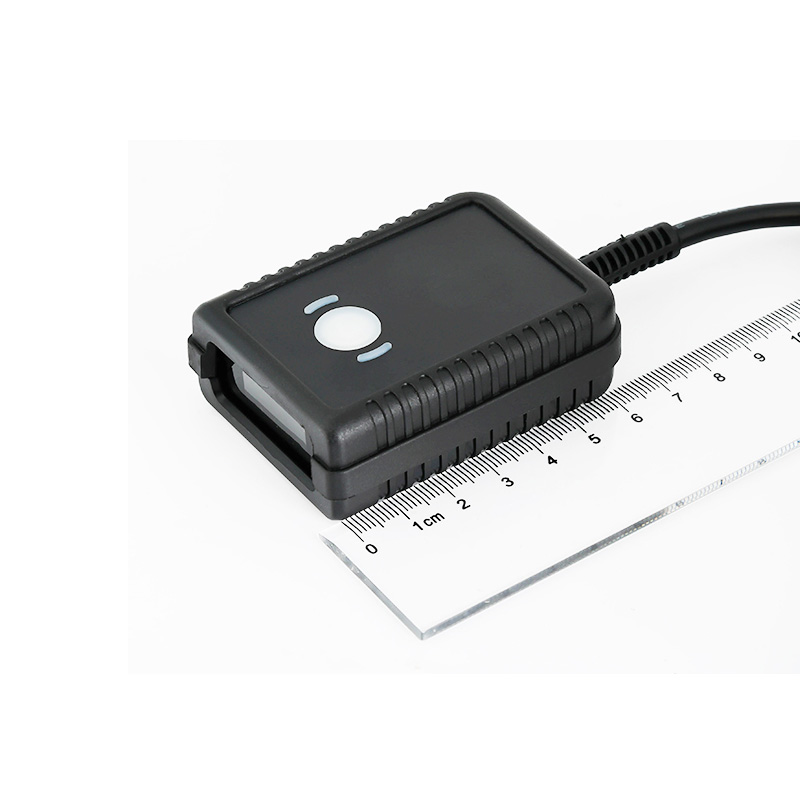

Dimensions :69.46(L)×48.11(W)×22.15(H)mm
Weight80 g
Operating Temperature-20℃~ +60℃
Storage Temperature-40℃~ +80℃
Humidity5% ~ 95% (non-condensing)
Ambient Light0 ~ 100000 lux (natural light)

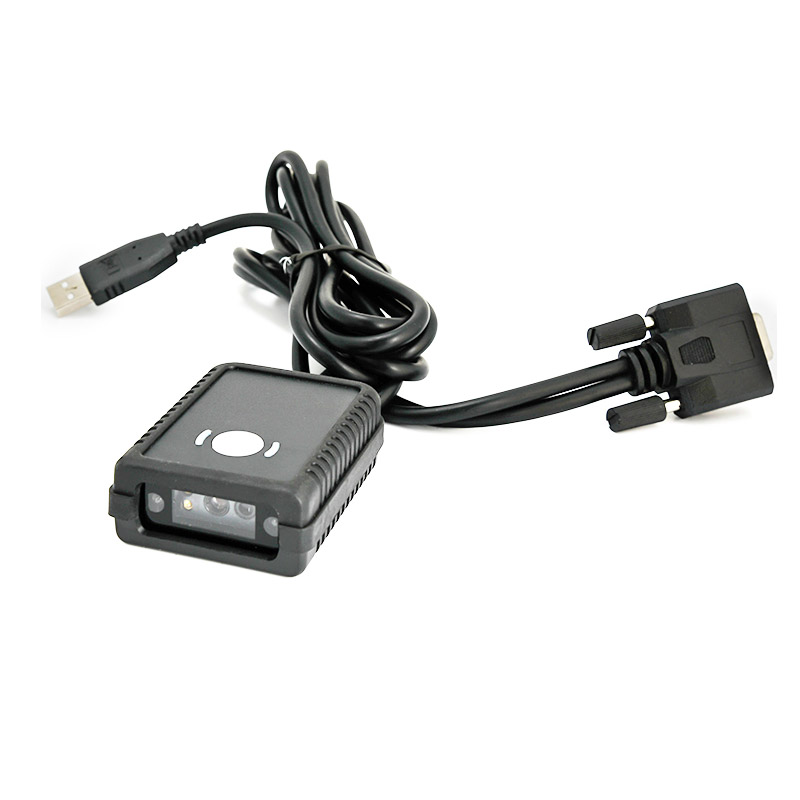

FCC Part15 Class B, CE EMC Class B Cable RS232 Cable Used to connect the LV3096R to a host device; Equipped with a power;

USB Cable Used to connect the LV3096R to a host device.

Power AdaptorUsed to provide power for the EVK3000.Output: DC5V, 2A;

Input: AC100~240V, 50~60Hz*Test conditions: T=23℃, Illumination=300 LUX*Test conditions:Code 39, 3 Bytes;

Resolution=10mil; W:N=3:1; PCS=0.8;Barcode Height=11mm; Scan Distance=120mm, T=23℃, Illumination=300 LUXconnector.
