S6 Pro RFID Handheld Reader

Product Introduction:

S6 Pro serial products extend Rakinda product serials into Android OS 10.0 with 4G &WIFI network communication.

Product details

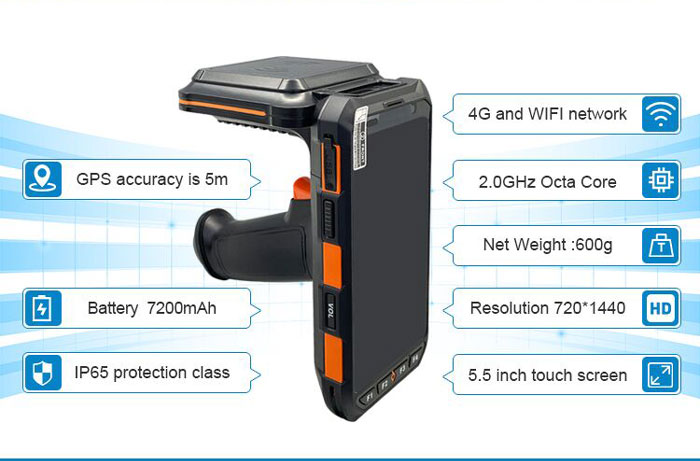

S6 Pro serial products extend Rakinda product serials into Android OS 10.0 with 4G &WIFI network communication. Inside the compact handheld device, sealing level of IP65 water/dust proof, 1.5m/5ft drop survival, ergonomic design, over-molding structure, quick-charging technology, and 5.5 inch IPS HD display.


Features of Bluetooth RFID Reader

* IP65 grade protection, can resist 1.5 meters free fall, and completely confine dust.

* Flexible expansion of functional modules such as RFID, NFC, PSAM, 2D barcode Shall satisfy different comprehensive projects requirements.

* Support multi-tag reading, the multi-tag reading rate is 200Tag/s and consuming less than 10 seconds for 2000 tags.

* Outdoor open environment reading distance can be up to 18 meters.

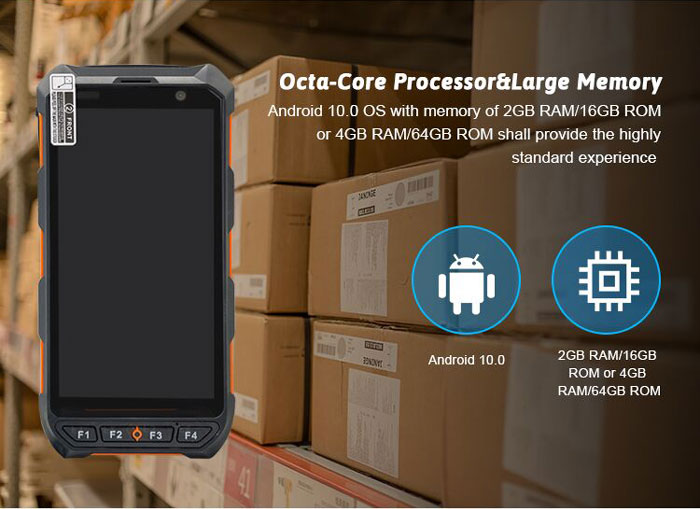

* Octa-core 64-bit CPU, It provide the large memory of 4GB RAM/64GB ROM to match the high-standard project requirements.



RFID Scanner Parameters

Specifications

Physical Characteristics

Dimension

171mm(H)x81mm(W)x20.4mm(D)±2 mm(without the pistol grip and UHF shield)

Weight

Net Weight :600g (including battery&wrist strap)

Display

Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight

Backlight

LED backlight

Expansions

2 PSAM, 2 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.8V, 7200mAh

Performance Characterstics

CPU

Cortex A53 2.0GHz octa-core

Operating System

Android 10.0

Storage

2GB RAM/16GB ROM or 4GB RAM/64GB ROM, MicroSD(max 256GB expansion)

User Environment

Operating Temp.

-20℃ to 50

Storage Temp.

-20℃ to 70

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

Sealing

IP65, IEC compliance

ESD

±15kv air discharge, ±8kv direct discharge

Development Environment

SDK

Handheld-Wireless Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

Data Communication

WWAN

TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;

WCDMA(850/1900/2100MHz);

GSM/GPRS/Edge (850/900/1800/1900MHz);

WLAN

2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac

WPAN

Bluetooth specification V2 1+ EDR,3.0+ HS and V4.1+ HS compliant

GPS

GPS(embedded A-GPS), accuracy of 5 m

Data Captuer

Barcode Reader(optional)





2D Barcode

2D CMOS Imager

Honeywell N6703 2D Scan Engine/CM60





Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode,

Postal Codes, US PostNet, US Planet,

UK Postal,Australian Postal, Japan Postal, Dutch Postal. etc.

Color Camera

Resolution

Rear 13 megapixel, front 5 0 megapixel

Lens

Auto-focus with LED flash

RFID Reader(optional)

RFID NFC

Frequency

13.56MHz

Protocol

ISO 14443A&15693, NFC-IP1, NFC-IP2

R/W Range

2cm to 5cm

RFID UHF

Frequency

865~868MHz or 920~925MHz

Protocol

EPC C1 GEN2/ISO 18000-6C

Antenna Gain

Circular antenna(4dBi)

R/W Range

18m(tags and environment dependent)

PSAM Security(optional)

Protocol

ISO 7816

Baudrate

9600, 19200, 38400,43000, 56000, 57600, 115200

Slot

2 slots(maximum)

Accessories

Standard

1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable

Optional

Cradle
