Category：2D Desktop Barcode Scanner

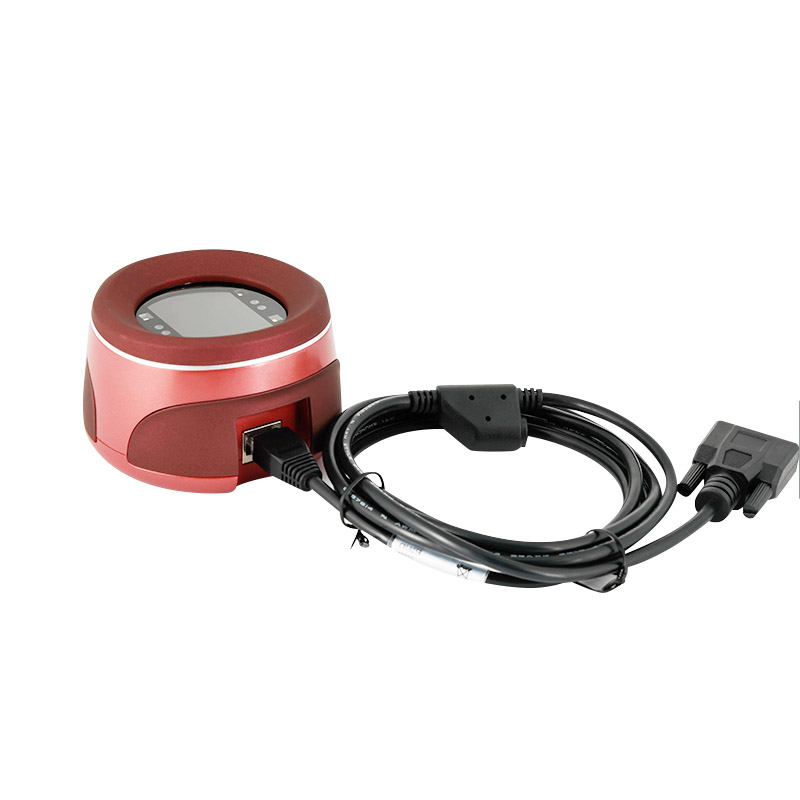

Product Introduction：The RD4100 desktop 2d scanner have a interface is USB or RS232.It can be connected with retail POS machines to read printed and screen barcodes.Even in dark conditions,the RD4100 can also read the phone screen bar code.
Applications: Mobile Payment, Conference Attendance, Member Management, etc.
Desighed primarily for such applications as electronic tickets/coupons mobile marketing and office automation,the RD4100 series desktop 1D/2D barcode scanner is able to read barcodes from paper and mobile phones.
It boasts the following features:
1.Digital barcode data capture

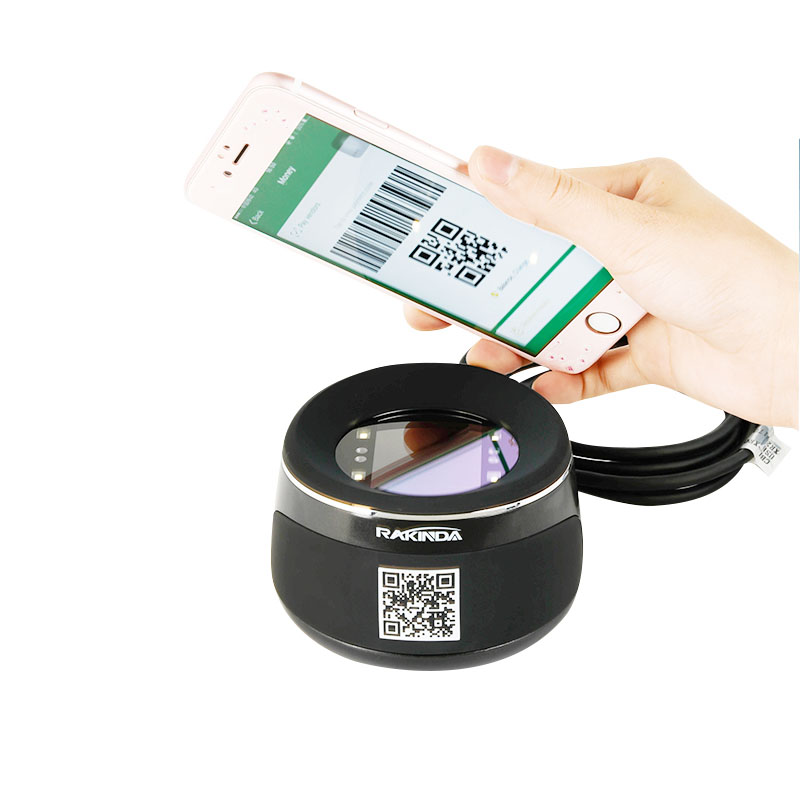

Capture of reading 1D and 2D barcodes off mobile phones.
2.Printed barcode data capture
Capture of reading 1D and 2D barcodes printed on paper.
Delivers effortless,snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast ratios,colors and reflectances.
4.Easy to use
Simple configuration by scanning the programming barcodes provided in the user guide.
|Processor||IOTC 0370 CHIP|
|Image Sensor||752×480 CMOS|
|Interface||RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS)|
|Symbologies||2D||PDF417, Data Matrix, QR Code|
|1D||EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey|
|Scan Mode Type||Sense mode|
|Light Source||White LED|
|FOV||Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°|
|Power Consumption||1.75W (max.)|
|Dimensions||90mm(Diameter) x 60mm(H)|
