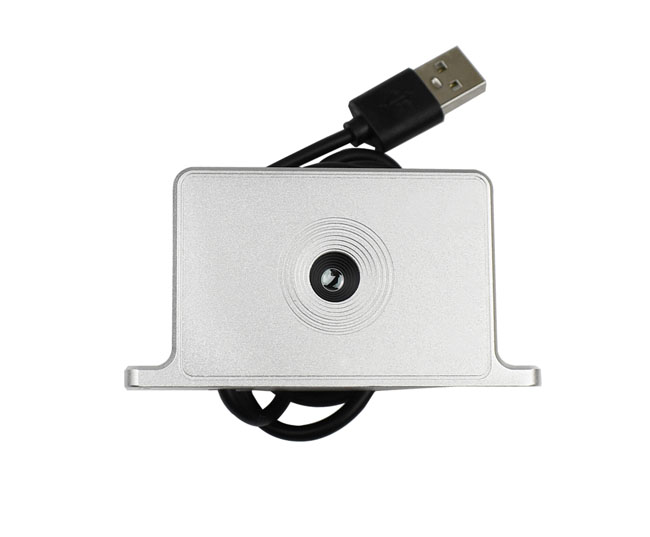

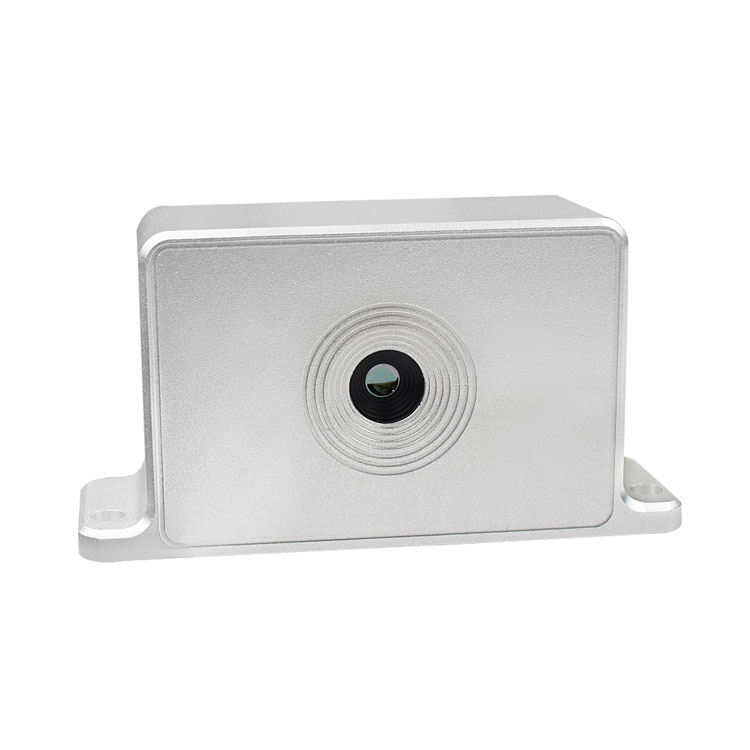

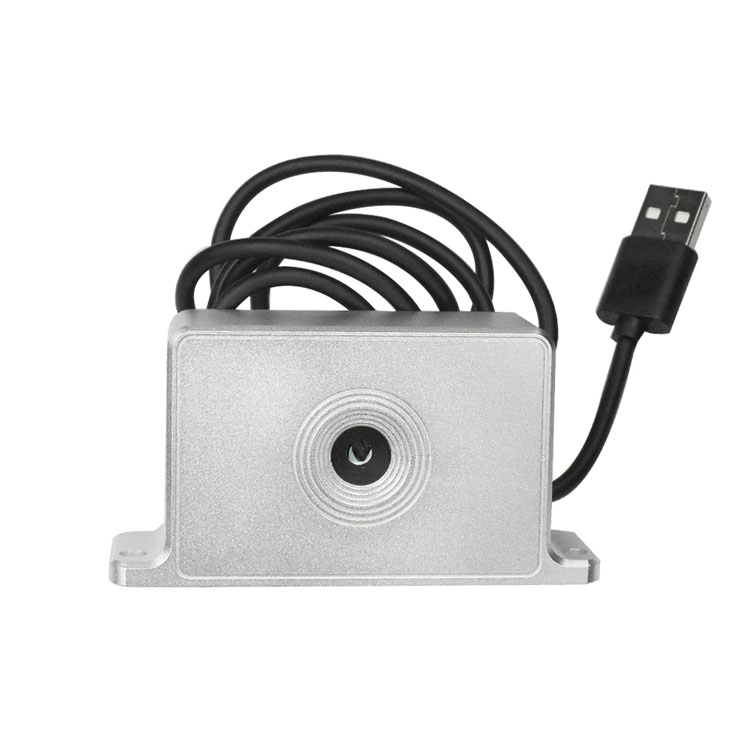

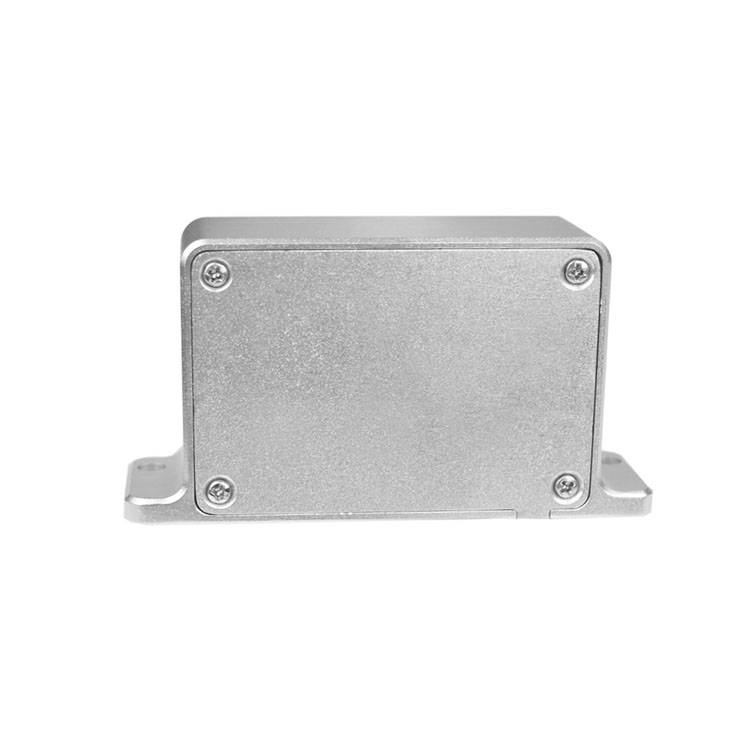

FT10 Face Temperature Measurement Module

Product Introduction:

The temperature measuring thermal imaging module is developed based on wafer chip scale packaging uncooled vanadium oxide infrared detector, fit for working with various intelligent platform.

Product details

The temperature measuring thermal imaging module is developed based on wafer chip scale packaging uncooled vanadium oxide infrared detector, fit for working with various intelligent platform. It boasts the features of high performance, low power consumption, small size and easy for development and integration. It meets the secondary development requirement of various infrared temperature measuring applications.


Product Features

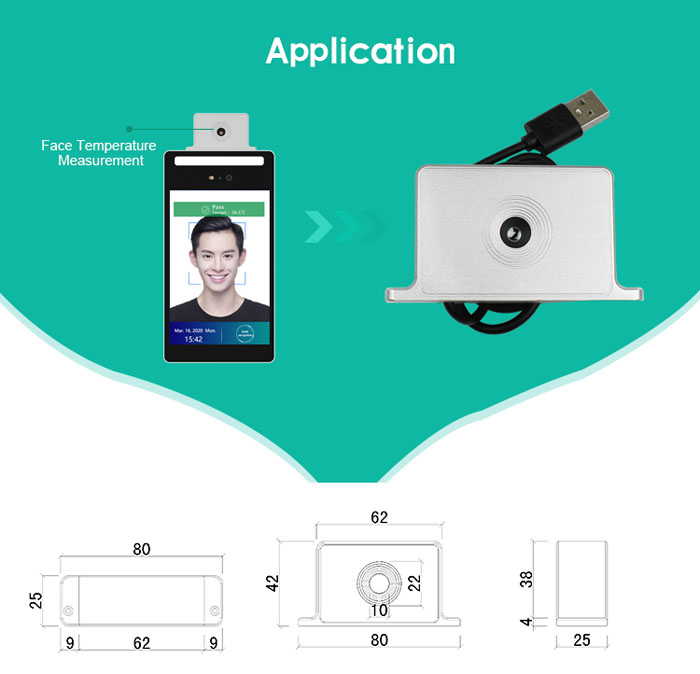

*Small size, easy integrated,size :62mm (L)*42mm(W)*25mm(H);

*USB interface,  easy to connect;

*Low power consumption;

*High image quality

*Accurate temperature measurement;

*Standard data interface, supporting secondary development, easy to integrate, and supporting access to various intelligent processing platforms.


Product Performance Parameters

Model

FT10

Resolution

256×192

Cellspacing

12μm

Angle of view

25.5°×19.2°

Image frame rate

25Hz/15Hz

NETD

≤60mK@f#1.0

Operating temperature

-15℃~+60℃

Supply voltage

3.8V-5.5V DC

Power consumption

<200mW*

weight

<18g

Size / mm

62*42*25

Data interface

Control interface/USB

Control interface

USB

Image enhancement

Multi-gear detail enhancement

Picture correction

Shutter correction

Swatches

White Hot/Black Hot/Multiple Pseudo Color Options

Temp measurement range

0 ℃ ~ + 60 ℃

Temp measurement accuracy

± 0.5 ℃ / ± 5% of range

Temp correction

Manual / Auto

Temperature data output

Real-time parallel output

Temp measurement statistics

Support maximum / minimum statistics, Temperature analysis
