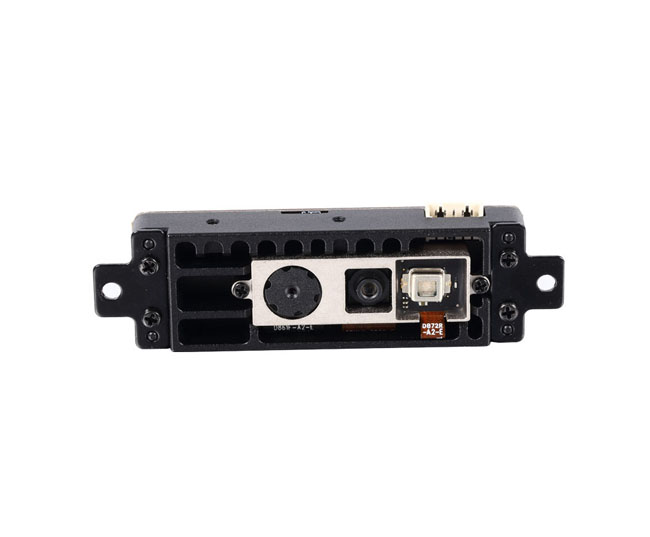

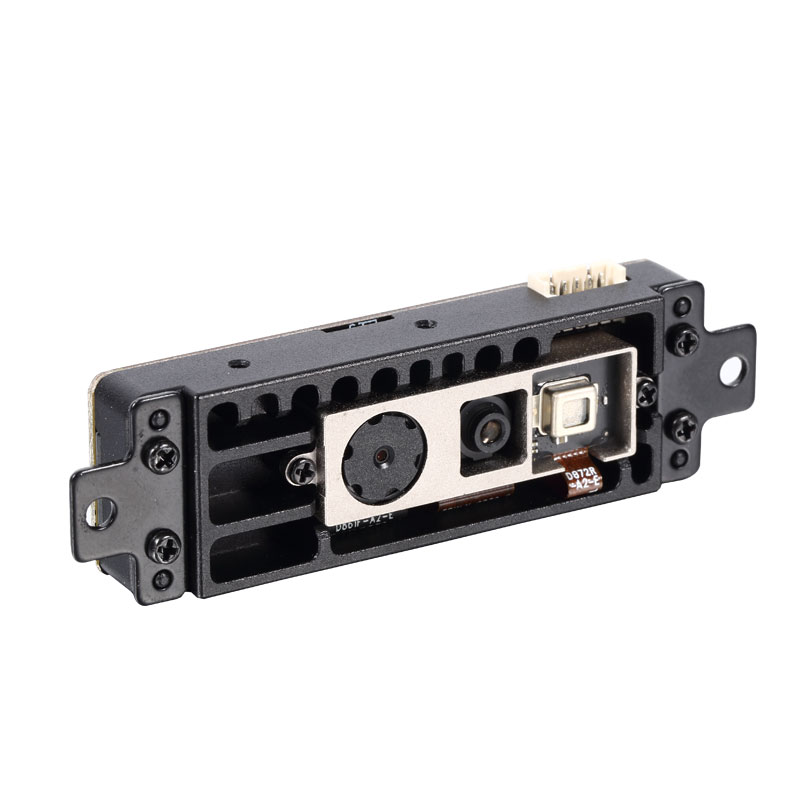

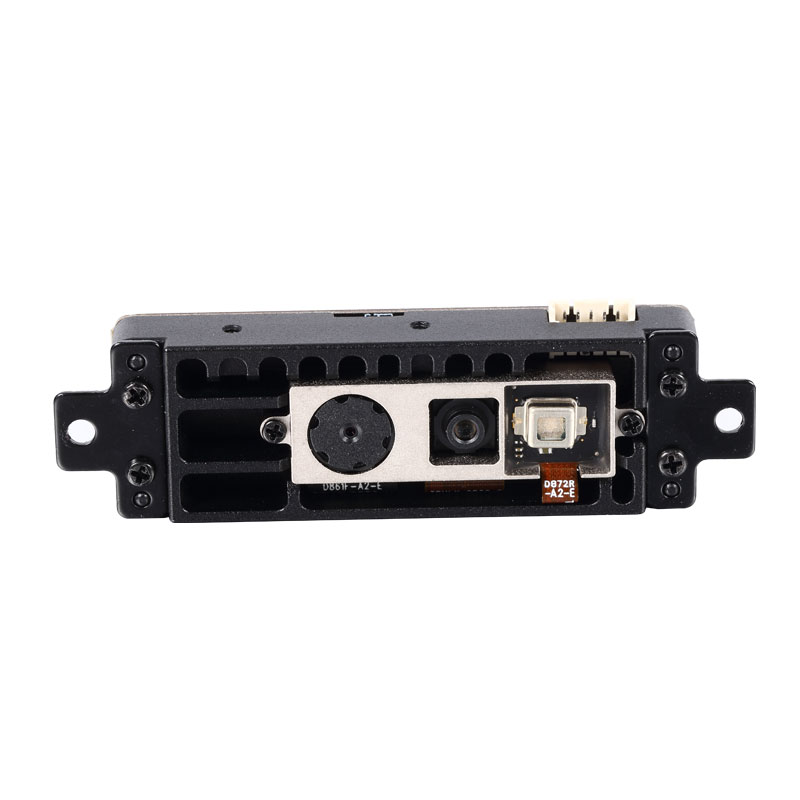

M5 Face Recognition Camera Module

Product Introduction:

The miniaturized and ultra-thin size structure is suitable for various embedded and handheld detection terminals, and realizes functions such as face recognition, living body detection, scene recognition, and gestures.

Product details

RAKINDA M5 product is a new generation of miniaturized RGBD cameras independently developed by Rakinda Internet of Things Technology Co., Ltd. The product integrates a 640 × 480 pixel TOF depth camera and a 5 million pixel RGB camera.

The miniaturized and ultra-thin size structure is suitable for various embedded and handheld detection terminals, and realizes functions such as face recognition, living body detection, scene recognition, and gestures. The product provides a complete SDK, and users can perform device integration and secondary development according to their own needs.


Product Features:

1.High precision-more than 99.9% recognition accuracy

2.Super fast recognition speed by facial scanning

3.Flexible&multiple scenarios in many files

4.3D TOF living detection with efficient & stable performance

5.High resolution, depth map resolution is 640 × 480;

6.Using 940nm VCSEL light source to support outdoor applications;

7.Miniaturized and ultra-thin design, the appearance size is 55mm ×  18mm × 10.6mm, suitable for various embedded applications;

8.Accurate synchronization and alignment between depth, IR and RGB images.


The Main Components Of The Product Hardware

⚫A TOF camera module;

⚫A VCSEL laser;

⚫One RGB camera module

⚫A dedicated ASIC processing chip;

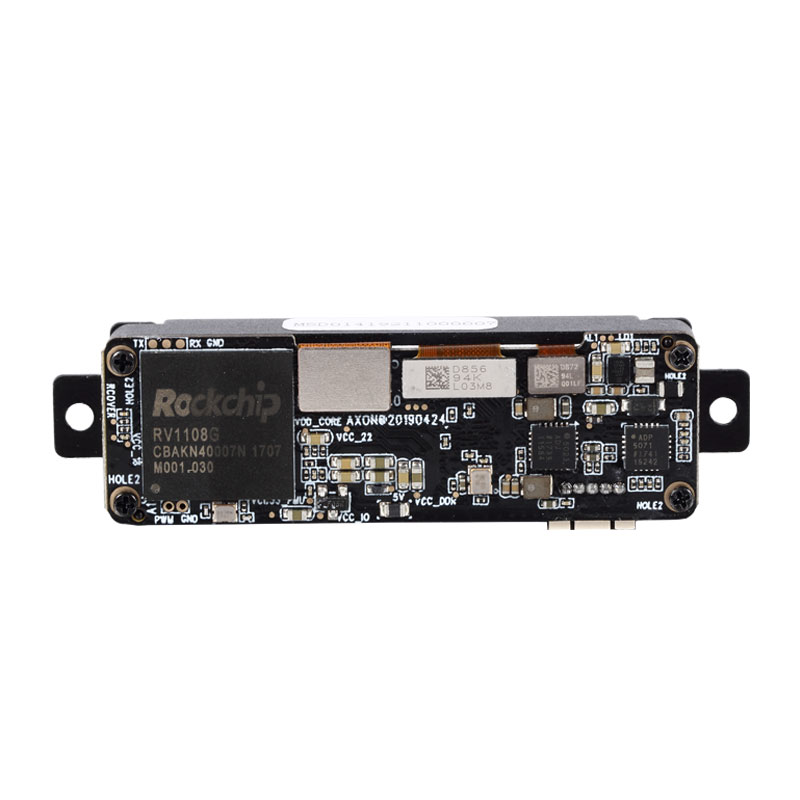

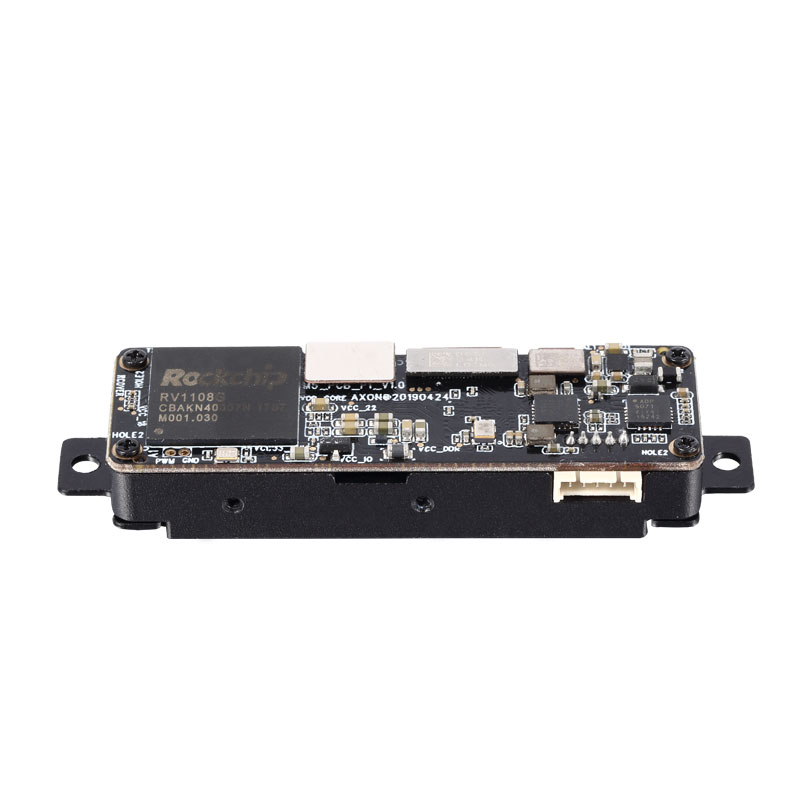

⚫A control motherboard (including CPU, FLASH, etc.);Camera module.

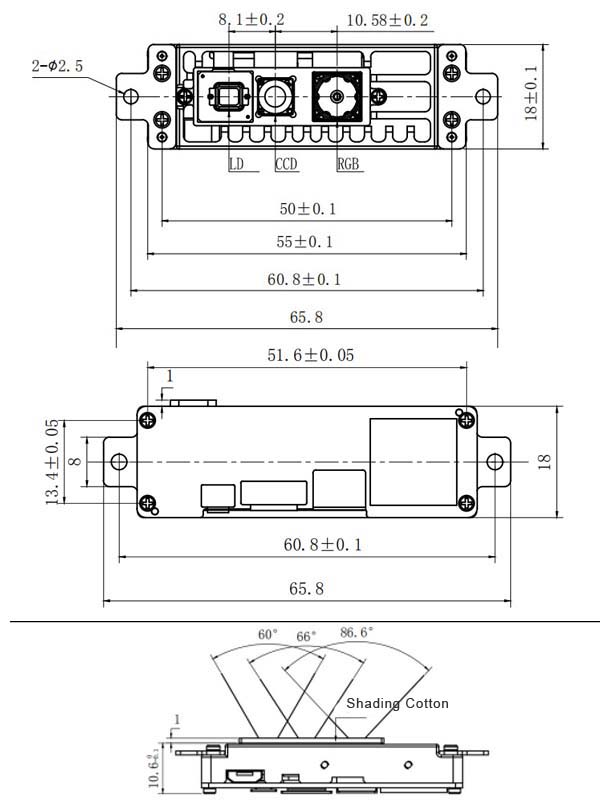

Product Structure Size(Unit:mm)

M5 Face Recognition Camera Module


Applications:

RAKINDA M5 product can be widely used in various types of deep vision detection scenarios, mainly including:

Industry

Application

Somatosensory entertainment

Somatosensory games, bone extraction, 3D fitting, gesture recognition, etc.

Face Recognition

Face payment, face access control, witness integrated machine, etc.

Robot

Avoidance


Product Parameters:

Parameter

Specifications

Model

RAKINDA M5





TOF

Resolution (horizontal x vertical)

640×480

Field of view (horizontal and vertical)

60°× 45°

Frame Rate (fps)

Maximum 30









RGB

Resolution (horizontal x vertical)

Support 1080P/960P/720P/VGA





Field of view (horizontal and vertical)

74°× 56° @960P(Default)

63°× 37° @1080P

74°× 42°@720P

74°× 56°@VGA

Frame Rate (fps)

Maximum 30

Video Coding

JPEG、RGB

Detection range(unit:m)注 1

0.3 - 1.2

Measurement accuracy注 2

0.1%

Measurement accuracy注 3

1%

Light source

940nm VCSEL

Data transmission interface

Micro USB

Power supply

5V

Typical power consumption(W)

3.4

Operating temperature(℃)

0-45

Operating system

Windows7 and above、Linux、Android

Structure size (length × height × depth, single

Bit: mm)

55×18×10.6(Module without mounting steel)

65.8×18×10.6( Module without mounting steel)
