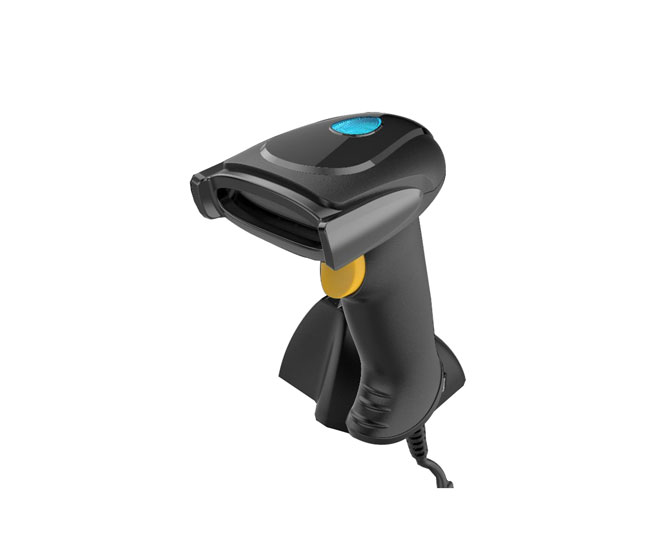

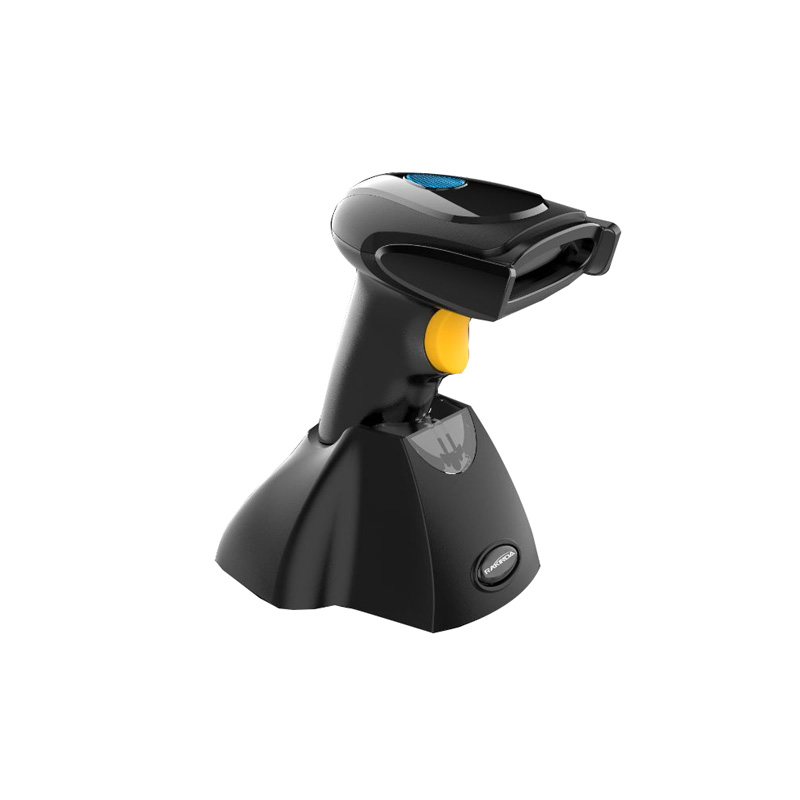

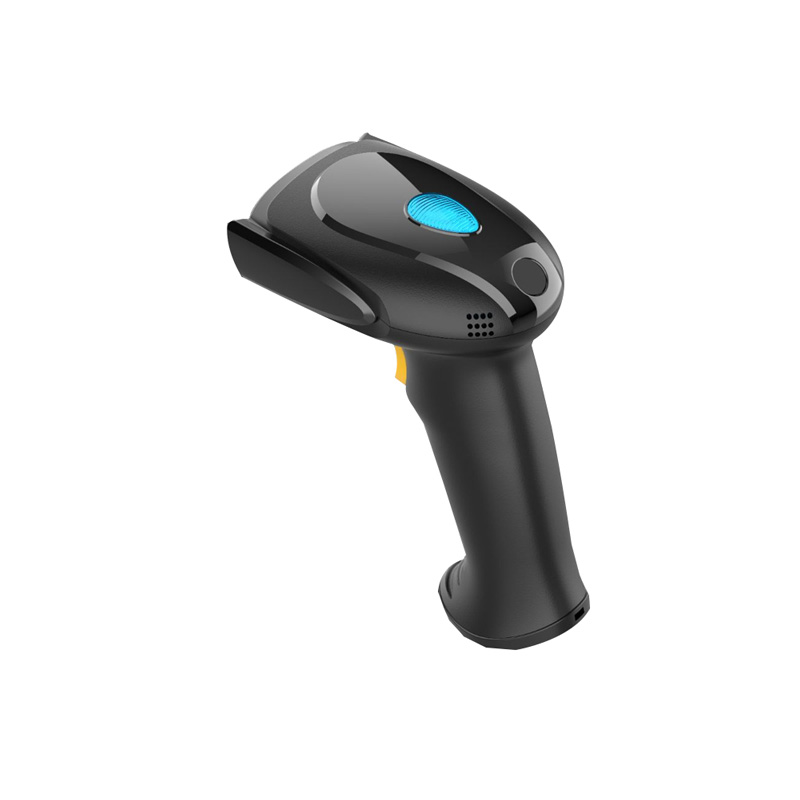

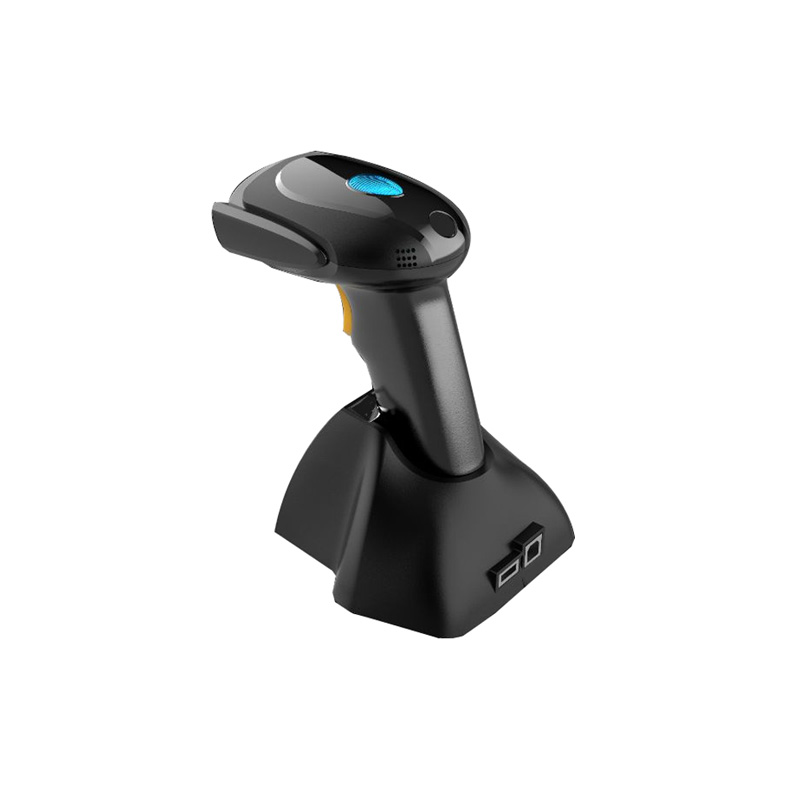

RD2035 can easily read almost all standard one-dimensional and two-dimensional bar codes, and its reading distance and resolution have excellent performance. RD2035 series has 3 models. RD2035U is a wired scan code gun, RD2035WL is a 2.4G wireless code scan gun, and RD2035BT is a wireless BT scan code gun (including 2.4G wireless mode).
Wireless Portable Barcode Scanner Features:
1: Support high-performance 1D/2D barcode scanning, which has good performance for barcodes that are poorly printed, contaminated or deformed and are difficult to read
2: One charge, it can be used continuously for more than 8 hours
3: High IP rating: more durable, resistant to fall, and long life
4: High-pitched buzzer prompts and blue LED reading instructions, immediate feedback on the reading experience
Parameter
Paremeters | |
Pixel | VGA (640 x 480), Support global exposure Sensor |
Light source | Aiming :617nm LED; 3500K Warm white LED |
Scanning distance | 30 mm -250 mm @UPCA -13 mil 100 % ,PCS=90% |
Field of view angle | 38° (H) x 25° (V) |
Scanning speed | 90 frames/sec |
Scanning method | Button trigger scan/ sense mode scan |
Minimum resolution | 0.076mm(3mil)@Code 39, PCS=90% |
Printing contrast | ，30%(UPC/EAN 100%, PCS 90%) |
LED indication | Blue + red LED indication |
Voice | Buzzer tone |
Wired communication | 2.0m data cable |
Wireless communication | Bluetooth supports three working modes: HID/SPP/BLE, 50-80 meters in open environment in Bluetooth mode; 100-200 meters in open environment in 2.4G mode. |
Physical parameter | |
Size | 151.9x98.1x68 mm |
Weight | Wireless: about 180g; Wired: 130g (without data cable) |
Power parameters | |
Rated charging voltage | 5VDC±5% |
Rated charging current | 1000mA |
Rated lithium battery capacity | 2000mAH |
Working time on one charge | More than 8 hours |
Rated charging voltage | 5VDC±5% |
Rated charging current | 1000mA |
Rated lithium battery capacity | 2000mAH |
Working time on one charge | More than 8 hours |
More than 8 hours | |
EMC | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
IP rating | IP54 |
Environmental parameters | |
Operating temperature | -10°C-50°C |
Working humidity | 5%~95% No condensation |
storage temperature | -40°C 〜+70°C |
Ambient brightness | 0^8,600Lux (fluorescence) 0^100,OOOLux (daylight) |
Fall resistance | Can withstand multiple drops from a height of 1.5 meters |
Reading distance | |
Code 39 -3 mil | 30 ・ 60mm |
Code 39 -3 mil | 25 -80 mm |
Code 39 -3 mil | 25 -100 mm |
UPCA -13 mil | 30 - 250 mm |
Decoding type | |
1D | UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13,JAN-8 & JAN-13, ISBN/ISSN,Code 39 (with full ASCII), Codabar (NW7),Code 128 & EAN 128 Code 32 Code 11 Codabar MSI Plessey Interleaved 2 of 5 Matrix 2 of 5 Straight 2 of5 IATA2 of 5 Pharmacode GS1 DataBar (Omnidirectional(RSS-14) Stacked , Limited , Expanded , Expanded Stacked) Interleaved 2 of 5 |
Stacked barcode | PDF417 ,Micro,PDF417 |
2D | Data Matrix QR Code Micro QR Code Support mobile phone screen reading |
