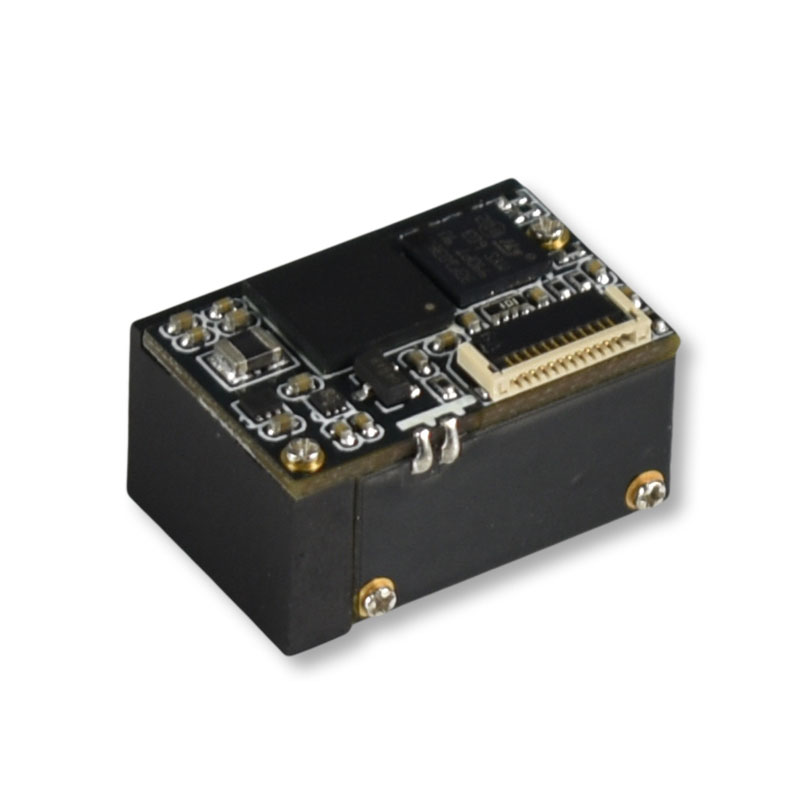

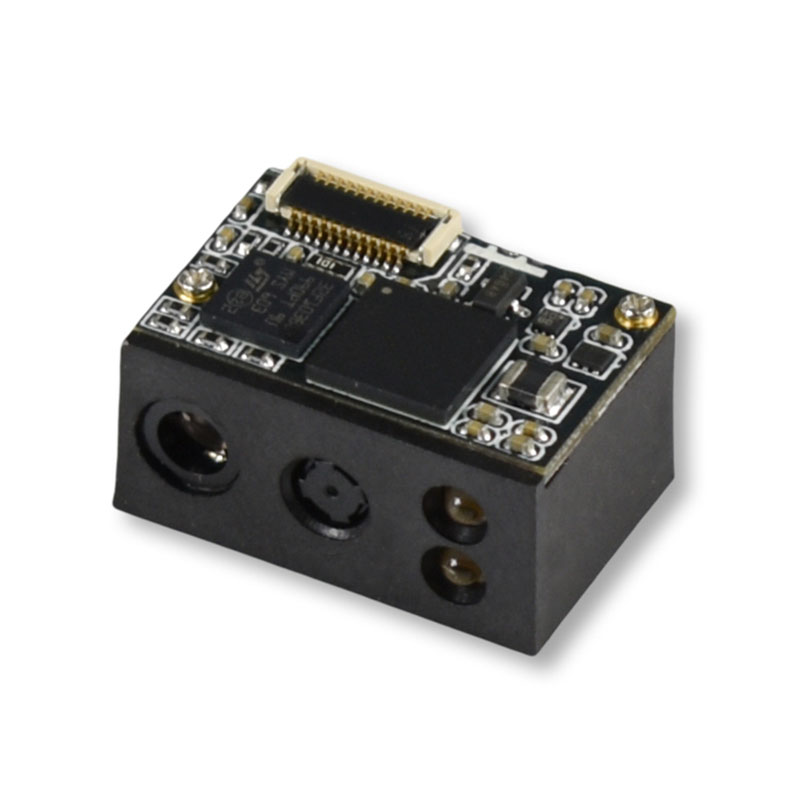

LV3296 2D Barcode Scanner Module

Product Introduction:

The LV3296 supports all mainstream 1D as well as 2D barcodes including PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code.This  compact engine weighs only 5 grams and fits easily into even the most space-  constrained equipments such as data collectors, meter readers, ticket validators and  PDAs.

Product details

Product Features:

1. Multi-Interface

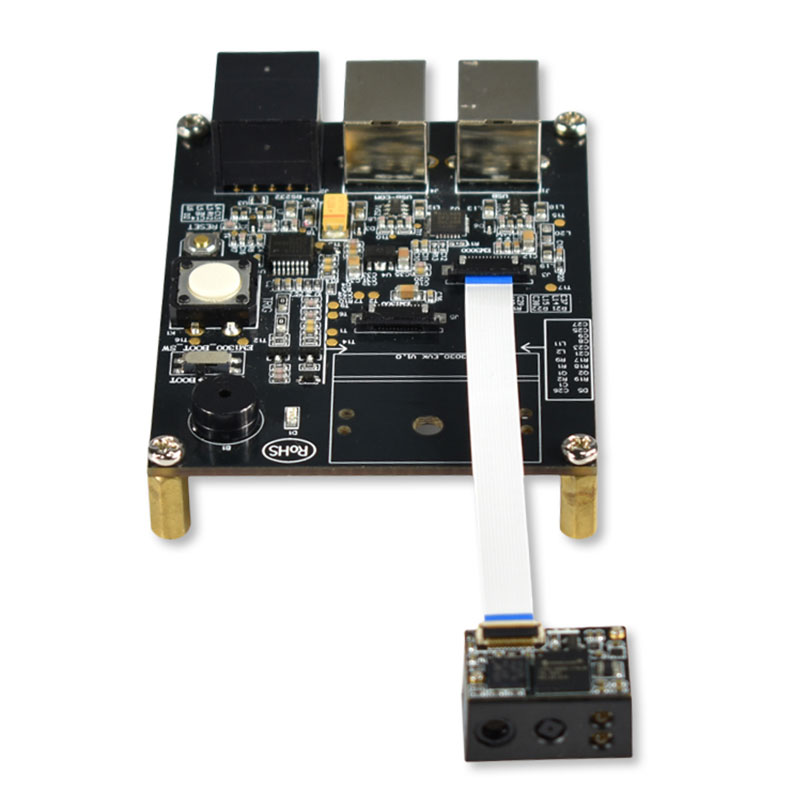

The LV3296 supports USB and TTL-232 interfaces to meet diverse customer needs.

2. High-endTechnology
Built with Rakindas fifth-generation of technology, the scan engine can decode even poor quality barcodes with ease.

3. Miniature and Ultralight Form Factor

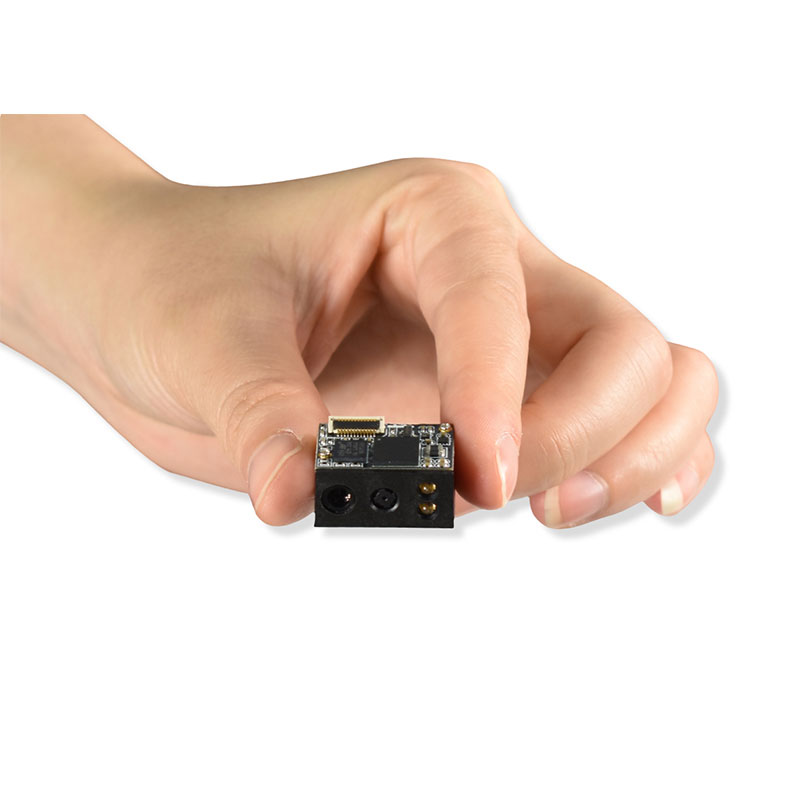

Ultra-compact, light and integrator-friendly, the LV3296 caters for miniaturization needs of OEM applications.

4.Outstanding Power Efficiency
The advanced technology incorporated in the scan engine helps reduce the power consumption and prolong the service life of the device.

Product Specifications:

InterfaceTTL-232, USB (optional)
Image Sensor752×480 CMOS
Symbologies2D: PDF 417, DataMatrix(ECC200,ECC000,050,080,100,140), QR Code 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
IlluminationRed LED 625±10 nm
Resolution≥ 5mil
Ambient Light0 ~ 100,000 LUX
Power Consumption0.76 W
Operating Voltage3.3±10% VDC
Current @ 3.3 VDCOperating Current 230 mA
Standby Current 4mA (USB communication not supported); 7mA (USB communication supported)
Sleep Current <5 uA
Operating Temperature-20℃~ +60℃
