RD4600 2D Fixed Mount Barcode Scanner

Product Introduction:

Category:2D Fixed Mount Barcode Scanner

Product ID:RD4600

Views:2110

Product Introduction:The RD4600 have a interface is USB or RS232.It can be embedded into Kiosk/Turnstile/Vending Machine/Locker to read printed or screen barcodes.The RD4600 has cover and it can be provided OEM customized services.Even in dark conditions,the RD4600 can also read the phone screen bar code.


Product details

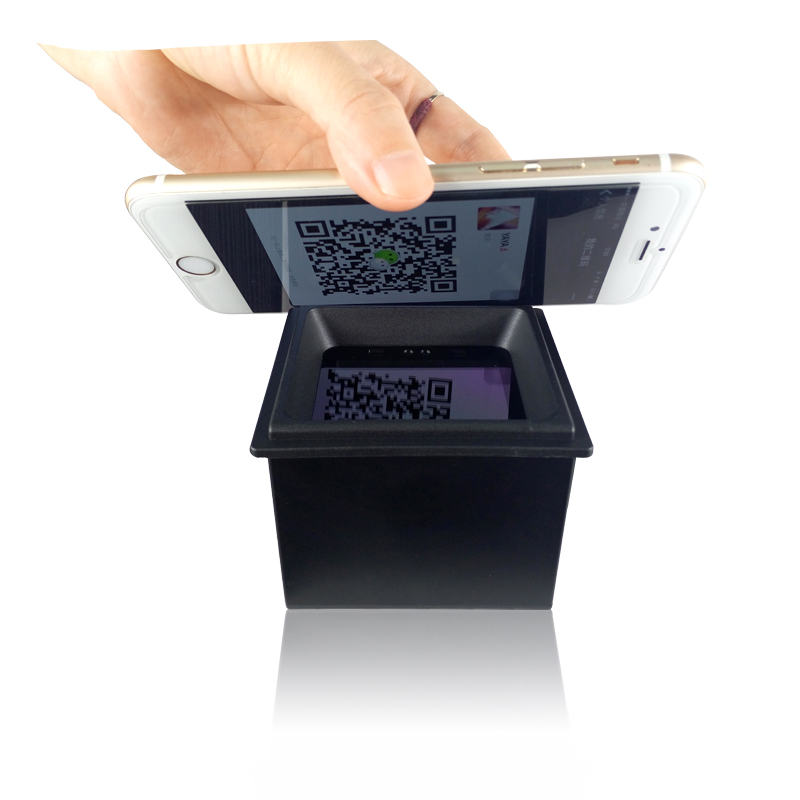

In recent years, people get a valid QR code on their phone screen, and they will get the information they need or even print their tickets directly at the kiosk.

For such public area application, the efficiency is very important. People need to get satisfactory experience in a short time. The response time of scanner is extremely important. RD4600 barcode scanner module is such a scanner. When phone screen code is presented, it only needs less than 0.4 seconds to respond. Users can get first time scan easily. The phenomenon of crowds waiting at info kiosk is greatly relieved with this high tech kiosk.

When you develop such kiosk, pls kindly contact us for RD4600 2d barcode reader, which will be just right for you!


Product Features:

1. Snappy capture of on-screen code and printed code

Armed with latest Rakinda scan technology, the scanner excels at scanning on-screen code even when the screen is covered with protective film.

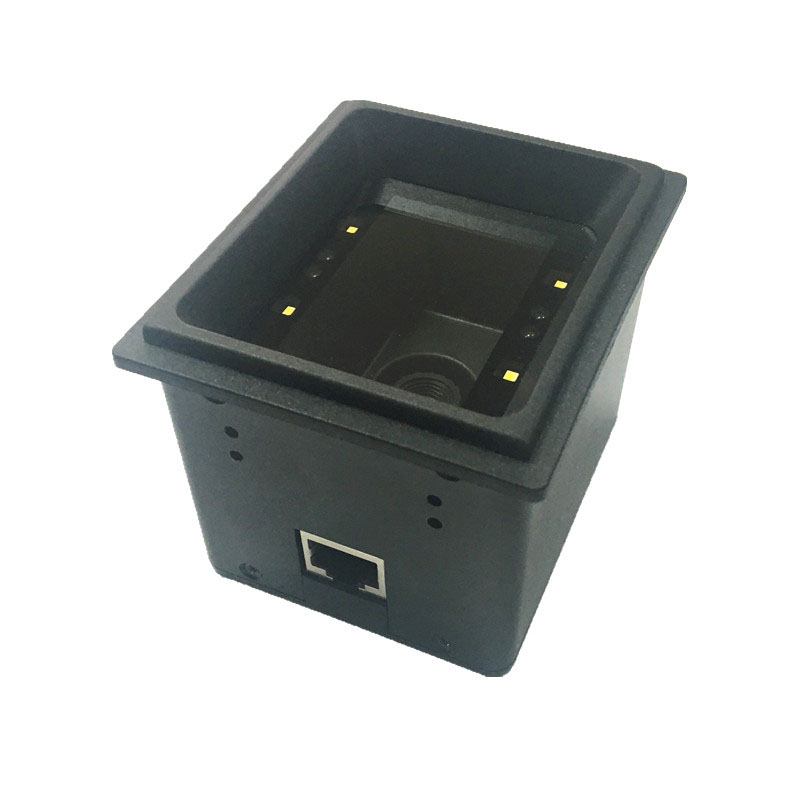

2. Durable Metal Housing

The scanner uses durable metal housing, making it dust and moisture proof.

3. IR Trigger

The IR sensor inside the scanner can sense the object quickly. It will start to scan immediately when a code is passing by.

4. Advantage

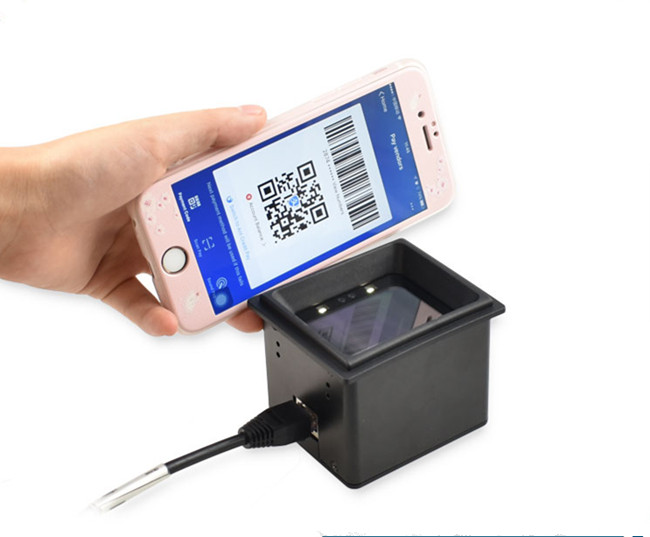

Good at Scanning Phone Screen Code.


Why Choose this model:

1. Read all major 1D & 2D symbols, as well as those on electronic screens.

2. Image auto-detection supports presentation scanning mode.

3. Ergonomic, snappy and stylish design allows for a natural and comfortable integration.

4. Protects your future investment with 2D capability at an affordable price meeting both current and future bar code scanning needs.

5. Omnidirectional scanning

6. Suitable to operate in diverse working environments.


Application:

turnstile, access control system; vending machine, ATM, queue kiosk, payment kiosk, etc

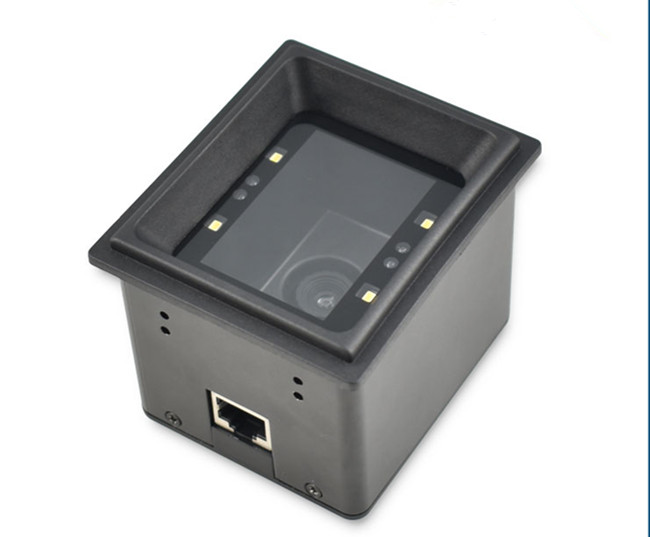

Noted: If customers need TCP/IP interface, we can supply aboard together with the scanner. Customers can also develop their own board.


Product Specifications:

Model:RD4600
Interface:USB/RS232
Image Sensor:CMOS
Resolution10mil
Light Source:   White LED
Symbologies2D: PDF 417、QR Code 、Data Matrix 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Scan ModeSense Mode
Resolution750 * 480
Scan Window38.3mm*60.4mm
Field of ViewDiagonal: 85°, Horizontal: 63.7°, Vertical: 70°
PCS≥30%
Power Consumption1.75W (max.)
NotificationBeep
Operating Temperature:  -10°C to 50°C
Weight:   300 g
Dimension :78.6mm(L) X 66.88mm (W) X 61.65mm(H)
Ambient light0 ~ 100,000 LUX


4500 series of fixed mount barcode scanner


We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please contact us now.
