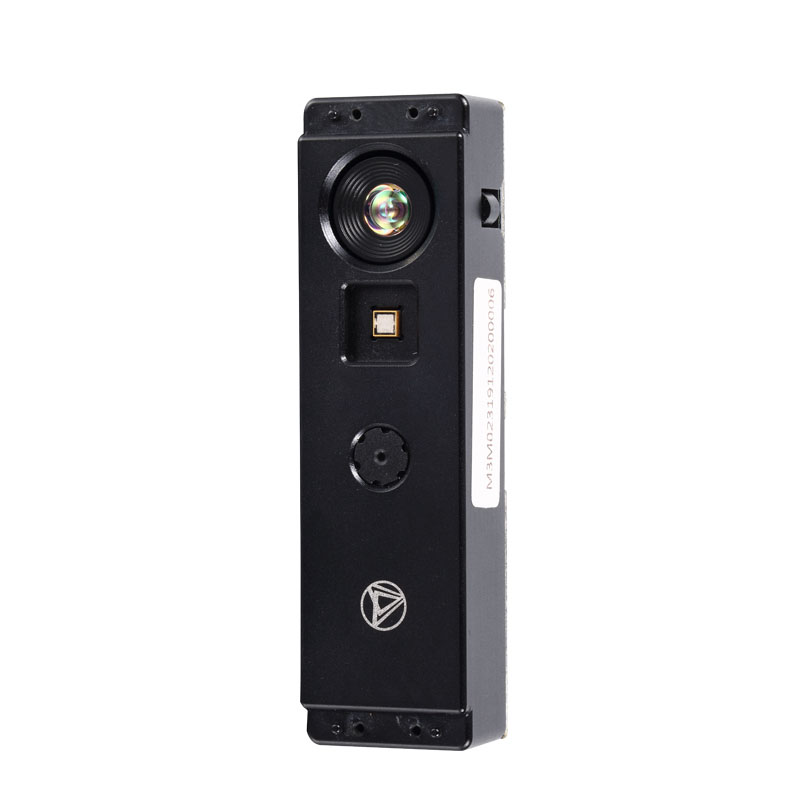

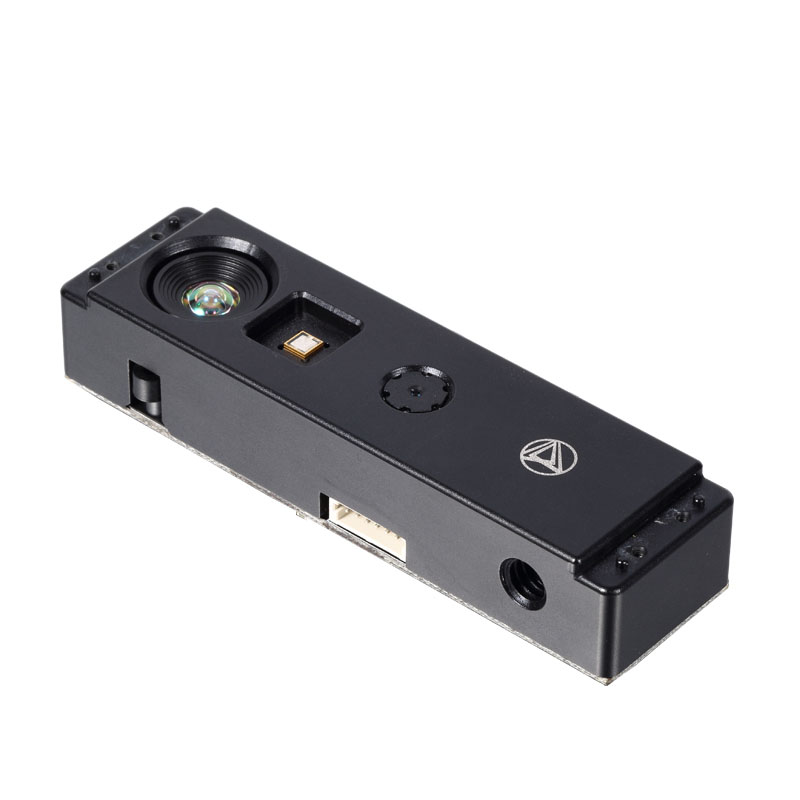

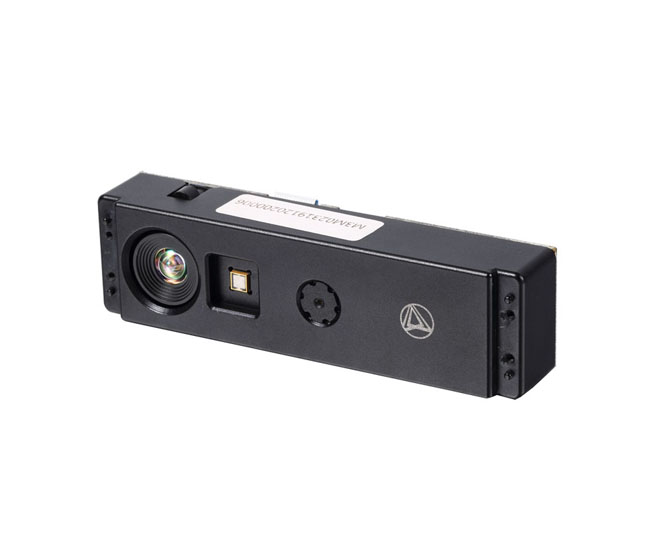

M3 Face Recognition Camera Module

It is a derivative product belonging to the M3 series. It has a more compact size and lower power consumption. It uses a standardized appearance size and is responsible for a unified interface. Data transmission and power supply are mainly applicable to scene applications such as face recognition and gesture recognition, which is more convenient for users' system integration.

The product integrates a TOF depth camera of 640 × 480 pixels and a 5-megapixel RGB camera. The product provides a complete SDK, and users can perform device integration and secondary development according to their own needs.

Product Features:

1.Dynamic Face Detection

Tracking and Recognition Algorithms Based on

2.Video Stream

Local Storage of 10,000 Supporting Devices

3.Personnel library

support screen display content configuration.

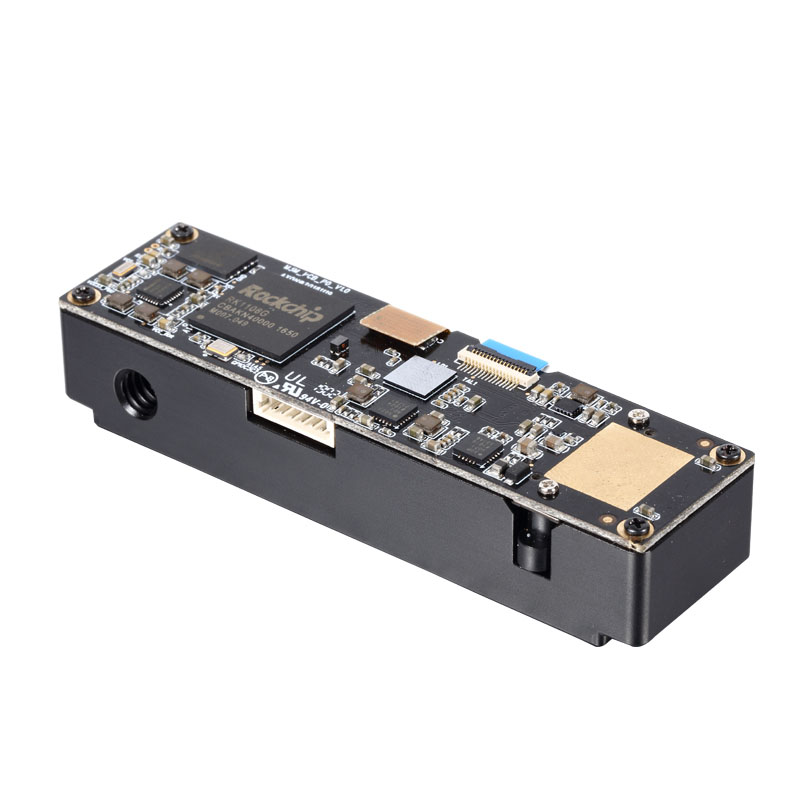

The Main Components Of The Product Hardware

⚫A TOF camera module;

⚫A VCSEL laser;

⚫One RGB camera module

⚫A dedicated ASIC processing chip;

⚫A control motherboard (including CPU, DDR, FLASH, etc.);

⚫A 6pin to USB + power interface cable (5V);

Product Structure Size（Unit：mm）

Application Scenario
The RAKINDA M3 product can be widely used in various depth visual detection scenarios, mainly including：

Product Specifications
